Stevia Peppermint Vanilla Flowers Seed Essential Extraction Machines System Production Line

Product Description

High-Efficiency Plant Active Ingredient Essential Oil Extraction System For Rose Flower
Natural products are the components or substances that are produced from natural sources such as plants. These naturally occurring products have an impact on human life and are therefore used as Medicines, dietary supplements, and cosmetics. The components of plants that have medicinal value and healing properties are called Bioactive compounds and they undergo a series of processes called Extraction and isolation.
Essential oil extraction machine is using steam to distill raw material to extractor the active ingredient essential oil from the different raw material.
Essential oil extraction equipment is widely used in the extraction of conventional oils from flowers, grass, trees, leaves, slices, roots,seeds and animal materials

Model	TQH-0.5	TQH-1.0	TQH-2.0	TQH-3.0	TQH-5.0	TQH-6.0
Extraction distillation tank volume :L	500	1000	2000	3000	5000	6000
Condenser cooling area:M2	2.0	4.0	8.0	12	20	24
Cooler cooling area:M2	0.5	1.0	2.5	4.0	8.0	10
Steam consumption :kg/h	90	175	350	520	900	1040
Cooling water consumption:T/h	3.	6.5	13	19	30	38

Characteristic
Extraction tank working volume can be from 20L to 10000L . Extraction tank material can be made from SS304 or SS316L This equipment uses steam distillation the plant raw material and to separate with water. This equipment is a super small steam distillation extraction equipment developed by our company according to the classic process of essential oil extraction, combined with the advanced automatic control system. Reasonable structure design and superior performance. Simple and flexible operation, one person can easily complete the whole production. The condensing part of the equipment has unique design and good condensing effect. The oil-water separation unit adopts the laboratory grade glass multi pipeline design, The oil-water separator with special structure is used for the separation and collection of essential oil. Residue raw material easy discharge after extraction, we use the pneumatic discharge gate design structure. Detailed Photos
Brief Process Flow Description(Steam direct distill extraction method):
First open the manhole to charge the flower or other raw material into the extraction tank ,then close the manhole . Open the condenser and sub-cooler chiller inlet valve to make the cooling running in the condenser /sub-cooler . Open the steam inlet valve to control the steam inlet flow capacity. Watch the water/oil separator and adjust the water drain or back valve to make the essential oil coming in a stable status. When the oil level goes upper and collect the essential oil . After collection all the essential oil ,then close the steam valve and cooling water valve Open the pneumatic discharge gate to drain the residue raw material Washing inside shell and pipeline by water.
Application
This steam distiller type extration system line can be used for various plant essential oil extraction, such as herbal raw materials, animal organics, seafood, flowers, seeds, leaves, fruits, stems, roots, and natural products.

Flowers	Rose; jasmine; lavender; chamomile; ylang ylang; geranium; neroli; clary sage; achillea millefolium; osmanthus; peony; marigold; laurel; honeysuckle; violets.
Leaves	Tea tree; eucalyptus; mint; patchouli; juniper berry; cypress; pine needles; spearmint; basil.
Roots	Ginseng; ginger; angelica; garlic; vetivert; angelica root; mugwort; borneol camphor.
Grasses	Rosemary; verbena; lemongrass; melissa; nardostachys; tarragon; caraway; dill; valerian; houttuynia; wintergreen; evening primrose.
Wood	Sandalwood; cedarwood; rosewood; Birch; holly; camphor; melaleuca; sassafras.
Resins	Frankincense; myrrh; benzoin; fir tree; amyris; Elemi.
Bark	Cinnamon.
Citrus	Bergamot; grapefruit; lemon; orange; lime; tangerine.

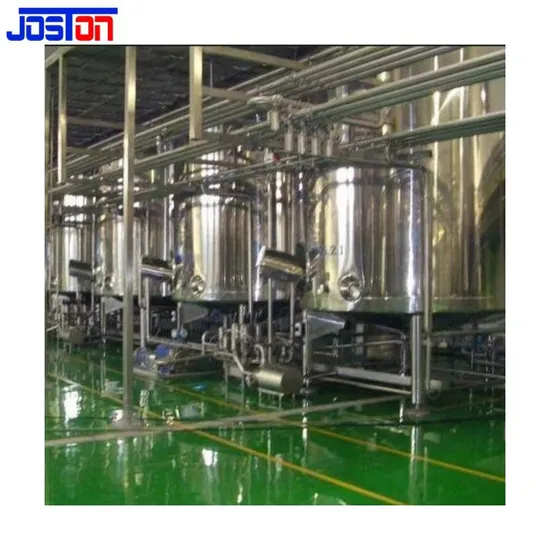

Successful Projects


Company Profile
Wenzhou Yinuo Machinery Co., Ltd. belongs to the Joston Industry group. The company's production base is located in the Binhai Industry Park of Wenzhou Economic and Technological Development Zone The company is specialized in the design, production, and installation of pharmaceutical machinery, dairy/beverage &food machinery, chemical industry machinery and sanitary fluid types of equipment etc. We are the leading professional machinery and equipment supplier; we produce equipment with a long history of over 15 years in China.
We can supply you with the full set solutions of the engineering, equipment, and technical services in the pharmaceutical and food industry after years of specific experience in the pharmaceutical industry and food industry, engineering research, and technical service.
Clients Visit

FAQ

Q	Are you a factory or a trading company?
A	We are a manufacturer. Our company specializes in producing and manufacturing industrial machinery, including stainless steel reactors, evaporators, crystallizers, distillers, and complete production lines for various applications such as fruit juice and herbal essential oil extraction. By maintaining our own manufacturing facilities, we ensure high-quality control, competitive pricing, and the ability to customize equipment to meet our clients' specific needs.
Q	Do you do OEM and ODM services?
A	Yes, we do, we can make the equipment as per your drawing, or if you give us the technical requirements, we can help design as well.
Q	How will your company control the equipment quality?
A	We have a rigorous quality control process that includes: 1)Use of high-quality materials and components. 2)In-house testing and inspection at various stages of production. 3)Compliance with industry standards and certifications. 4)Continuous improvement and adherence to best manufacturing practices.
Q	Do you supply installation equipment overseas?
A	Yes, we offer comprehensive installation and training services to ensure the smooth operation of our equipment. Our technical team can assist with on-site installation, and we provide detailed training for your staff on equipment use and maintenance.
