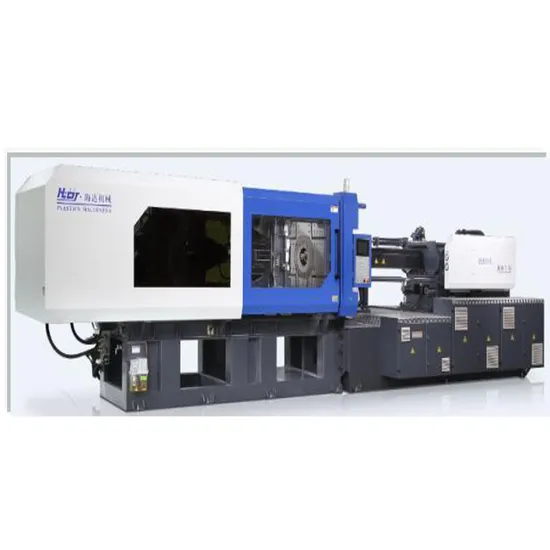

Haida Pet Series Injection Molding Machine

Product Description

Product Description
HDPET Preform Series:
Portable installation>>> High rigid template structure, fully meet the large-size PET bottle embryo mold installation.It is more suitable for multi-cavity and deep-cavity bottle embryo forming process to increase the ejection force and match the ejection stroke reasonably.
Circular energy saving>>>
Optimize the whole machine oil pump motor configuration, significantly improve the whole machine cycle efficiency.

_____________________________________________________________________________________________________________________
Basic Information:

Number Item

HD290PET

Category

HDPETSeries

OEM

Available

Warranty

1 Year

Factory

Yes

Model NO	HD290PET		Computerized	Computerized
Certification	CE, ISO9001:2008		Plastic Processed	PET
Style	Horizontal		Packaging Details	wooden pallet
Plastic Type	Thermoplastic		Machine Type	Hybrid(Eletric for injection parts,Hydraulic for clamping parts)
Condition	New		Energy Saving	Servo Energy Saving
Brand Name	Haida		Production Capacity	100 Set/Sets per Month
After-sales Service Provided	Engineers available to service machinery overseas		Warranty of core components	1 year
Place of Origin	Zhejiang,Ningbo,China		Local Service Location	Viet Nam, Brazil, Thailand, South Africa, Uzbekistan

Detailed Photos
INJECTION SYSTEM&PLC SYSTEM:
Large diameter screw design, injection stroke optimization, injection volume than the conventional machine increased by more than 50% .PET special-purpose large length-diameter ratio barrel screw, significantly improve the sol speed, reduce the plasticizing temperature, improve the transparency of the bottle embryo.
________________________________________________________________________________________________________________________________________
CLAMPING SYSTEM:

Adopting the international advanced concept, changing the mechanical properties of the clamping mechanism, significantly reducing the deformation of the template, and effectively improving the precision of the products. The distance between the pull rods is larger, and the mould shifting stroke is longer. Large ejection space, standard thimble forced reset mechanism, to meet the requirements of special mold forced reset. The platform shortens the forming cycle, improves the production efficiency, various hydraulic ejection modes, special processing of the pull rod, and the strength is reliable.
---------------------------------------------------------------------------
HYDRAULIC SYSTEM:

1, The standard equipped with servo energy-saving pump system, using high-performance servo motor and famous oil pump, with high-quality and reliable driver, perfect to achieve high energy-saving, high precision, high response, low noise, low oil temperature and other excellent characteristics, the utility model has the advantages of compact structure, good self-priming property of the oil pump and little influence by the work
2, Equipped with world-class brand hydraulic components, reasonable oil arrangements, smooth and reliable operation, significantly improve the efficiency of the heat will be smaller control;
3, Equipped with self-sealing oil filter, machine maintenance easy;
4, Eccording to customer demand, flexible matching and installation of a variety of special functions.
________________________________________________________________________________________________________________________________________
CONTROL SYSTEM:

Water-proof and dust-proof sealed electric box is safe and reliable; the software functions are more powerful and can meet the needs of various mould forming processes; the Internet management system is reserved to realize the remote real-time monitoring and maintenance diagnosis of each injection molding machine, reasonable arrangement of production and other advanced management

Product Parameters

ITEM-HD290PET		UNIT	DATA
Injection Unit	Screw Diameter	mm	75
	Screw L/D Ratio	L/D	24
	Injection Volume	cm3	1325
	Shot Weight	g	1536
	Injection Pressure	Mpa	133
Clamping Unit	Clamping Force	KN	2900
	Opening Stroke	mm	610
	Mould Thickness(Min-Max)	mm	230-630
	Space Between Tie-Bars	mm	630x630
	Ejector Force	KN	113
	Ejector Stroke	mm	165
General	Pump Pressure	Mpa	16
	Motor Power	KW	18.5*2
	Heater	KW	26
	Machine Dimension	m	7.2x1.6x2.3
	Machine Weight	T	10
	Mould Orientation Ring Diameter	mm	Φ160
	Nozzle Radius	mm	SR15

Application
APPLICATION FIELD:


Company Profile
HAIDA MACHINERY established in the year 1991 at Ningbo, is one of THE TOP 10 CHINESE injection molding machinery manufacturer. Nearly 30 years, we had established more than 60 sales and service agencies in China and overseas.
We are manufacturing different types of injection molding machines and range starts from 50 Ton to 3300 Ton.
We committed to providing the complete solutions for Plastic. Our name involved in manufacturing and supplying a flawless quality range.
