Factory Price HD 4K LED Sexi Video Wall Panel P1.53 Indoor LED Display Screen

Product Description

Indoor Fixed LED DisplayTypes of indoor Fixed LED display :Indoor LED display models are mainly named according to the different center distances between LED points. For example, P3 model means that the center distance between points is 3mm, P4 means that the center distance between points is 4mm, and so on. At present, the main models of indoor LED display are: P1.25,P1.53,P1.86,P1.95,P2,P2.5, P2.604, P2.976, P3, P3.91, P4, P4.81. How to choose the model of LED display:The led display screen with the same size, the smaller the point spacing, the higher the definition, and the better the display effect of the LED screen. Of course, its price is more expensive; For example, for the same size LED screen, the display effect of P2 is better than that of P3, and the price of P2 is more expensive than P3; Therefore, if the price is not considered, the clarity of small spacing is the highest and the effect is the best;Different LED screen sizes and different viewing distances, the corresponding models are recommended.

Area of LED screen	Recommended model
≤5m2	P0.9\P1.25
5-10 m2	P0.9\P1.25\P1.53\P1.86\P2
20-50 m2	P0.9\P1.25\P1.53\P1.86\P2\P2.5\P3
≥40m2	P0.9\P1.25\P1.53\P1.86\P2\P2.5\P3\P4

Product Parameters

Product name	P1.25	P1.53	P1.86	P2	P2.5	P3.07	P4
Pitch Size	1.25mm	1.53mm	1.86mm	2mm	2.5mm	3.076mm	4mm
Module Pixel(dots)	256*128	208*104	172*86	160*80	128*64	104*52	80*40
Pixel density (m²)	640000pixels	422500pixels	288906pixels	250000pixels	160000pixels	105688pixels	62500pixels
refresh rate	3840Hz	3840Hz	3840Hz	3840Hz	1920/ 3840Hz	1920/3840Hz	1920/ 3840Hz
Scan mode	1/64 scan	1/8 scan	1/32 scan	1/16 scan	1/32 scan	1/26 scan	1/20 scan
View angle(H/V)	160/160degree
Brightness	800cd
Module Size	320*160mm
Power consumption	100-1000W/m²
Net weight	30kg/m²
Operating temperature	-25°C~+60°C
Operating humidity	10%-95%RH
Life time	≥100,000hours
Out of control dot	≤1/10,000
Whole Display Flatness	≤1mm Juncture
Exchange frame speed	>150frames per second
Control distance	120m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power	110V/220V±15% 50Hz
Operating system	Windows series
Protection Level	IP60 (Not waterproof)
Maintenance way	Frontal and Rear
Accepting signal	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI

Product Description
Led display screens are divided into indoor, outdoor, and semi outdoor (under the doorway balcony or corridor) according to the use environment.

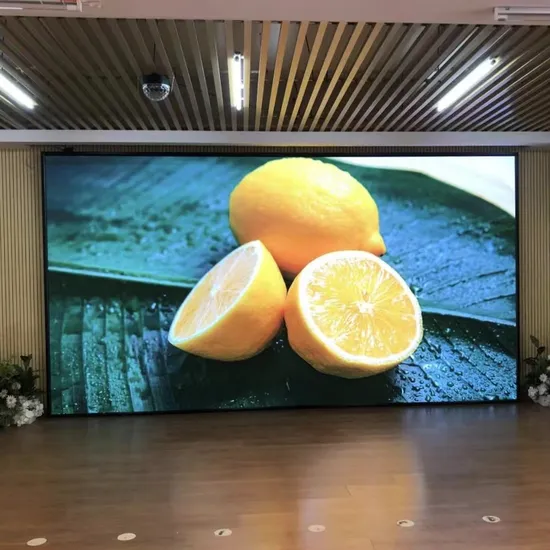

High definition Indoor full color LED display are widely used in indoor commercial advertising, mainly forStage,stations, shopping malls,meet room, Exhibition hall, information center, monitoring center etc.
The size is customized according to customer needs, with high brightness and large viewing angle.
Full color LED display supports access to multiple video source signals, such as TV signals, DVD players, surveillance cameras, and other signal sources; It can display various public information, notices, advertisements, animations, images, text, television, movies, videos, and other content LED MODULE
Module size(mm):320*160mm ,LED SMD:1515/2121/2020,Brightness:800CD
CABINET
Fixed installation Indoor led dispaly will use 640mm*480mm(4:3),600mm*337.5mm(16:9) ect die-casting cabinet.
For indoor, hot sale model have P1.25/P1.53/1.86/P2/P2.5
INSIDE THE CABINET
Equipment and accessories
Multi-industry scope applied
Control room Public areas Live room
Library Hotel Meeting room
View more our hot sale products, you can click the picture.
Our Product case
Company Profile
About us
Qichuang was founded in 2005 and is one of the largest and most professional LED display manufacturer in Guangzhou.
We integrates research and development, production, marketing, construction installation, and after-sales service.
The products include: indoor and outdoor LED electronic displays, full-color LED displays, single and dual color LED electronic screens and so on. Focusing on full-color LED displays, as well as providing customers with other personalized LED screen design and services.Qichuang achieves ISO9001,CE,ROHS,FCC,CCC,CB certificates. With features of stability,high resolution, vivid color, long life-span, power saving and cost saving. Qichuang has high reputation among domestic and overseas customers.
We exported to 100+countries and regions such as USA, Canada, Mexico, Guatemala, italy, Germany, France, Poland, Russia, Qatar, UAE, Lebanon, Saudi, Arabia, Brazil, Argentina, Thailand, Indonesia, Nigeria, Ethiopia, South Africaetc.
LED displays are shining in outdoor advertising billboards/ business centers/ shopping malls/ sportstadiums/ indoor&outdoor stages/exhibitions/ TVstations/traffic signs and so on.
Our advantage
Qualification certificate
Packaging & Shipping
FAQ
1. Experienced&Professional:
19-year manufacturing experience on LED displays, professional workmanship & design.
2. Best raw materials:
high quality LED chip,high brightness and long life span.
3. Competitive price:
100% factory price,competitive and reasonable price.
4. Strict quality control:
The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the production process, and pass the multiple quality inspection to ensure that everyproduct is qualified.
5. Quality guarantee:
All our LED display screens is more than 100,000 hours life span.
6. Long warranty:
3-5- year warranty, any quality problem during warranty time will be handled .
7. Prompt &Professional service:
Any inquires will be replied within 24 hours and you'll get helpful suggestions from us.
Your questions
Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P1.25, P2, P3 P4.....P8,P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Best raw materials: 3. Competitive price: 6. Long warranty:7. Prompt &Professional service:
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, thedesired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.
Q6:Can I order a sample?
A:Yes, your sample orders are welcome, after checking our quality and service, we are confident that you will come back for your future orders.
After Sales Service
1. Free guarantee repair (including labor and material): free for repair service in Qualitywarranty period and reasonable charge for spare parts and maintaining service afterthe quality warranty period.
2. Responding time: upon receiving user's notification, we ensure 24 hours after-salestechnical support.
3. Spare parts: necessary spare parts are provided together with products to
customers.When your screen have problem, please call us, email us, or through the Skype,Wechat, WhatsApp, QQ etc to tell us the detailed fault information (if the fault could bepresented by pictures, please take pictures and send them to us as possible as youcan),Our after-sales service engineers will offer technical support and guidance basedon your description.
A. Real-time communication service
We can provide customer services through TM, Email, Skype,Wechat,WhasApp, QQ etc.
B. Remote control service
We can operate the customer's computer remotely via Internet, to install and set up software for customers, and to dispose of the technical fault of LED display system software.
C. Post Service
Under warranty, customers could send the defective components back to us; we will repair them and return to you as soon as we can.
The shipping cost from the buyer to the supplier is covered by the User. The shipping cost from supplier to the Buyer will be paid by the supplier.
