High Quality Perforating Embossing Toilet Paper Machine

Product Description

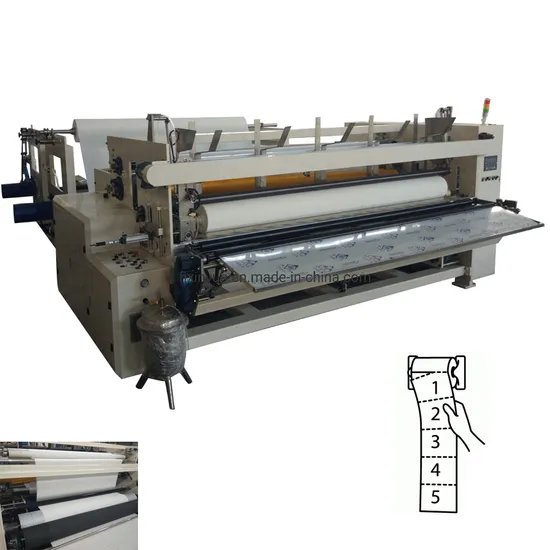

High quality perforating embossing toilet paper machine XY-TQ-B
Description of the equipment:
The production process is: Unreeling - Embossing - Perforating- Lamination- Rewinding- Tail-gluing- Edge trimming---Automatic core loading.
Technical data:

Machine Model	1092	1575	2000	2200	2400	2600	2800
Width of jumbo roll (mm)	1200	1750	1950	2150	2350	2550	2750
Finished Products Diameter	Φ80~280mm (Tightness can be adjustable)
Finished Products Inner Diameter	Φ32~76 mm
Jumbo roll diameter (mm)	Φ1200 (Other sizes please point out)
Jumbo Roll Inner Diameter	76.2 mm (other sizes please point out)
Perforation distance (mm)	4 blade,90~160mm; 2 blade,180~320mm;
Production speed	180-230 m/minute
Parameter set	Touching-screener Multi-menu Man-machine Interface Operation System
Controller	Controller
Mechanical driving	Driven by stepless regulator to guarantee the precise length of final products.
Air pneumatic system	3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (prepared by buyer)
Chosen items (Should be ordered separately)
Embossment	Single embossment, Double embossment, Edge embossment
Embossment down roller	Paper roller, rubber roller
Jumbo roll stander	1-3 plies
Printing unit	Single color heliotype printing unit
Other special request for machine is welcome

Features:
1.This model is designed with computer control system, fully automatic in production process, the function is complete and the production speed is high.
2.It can automatically change the core, spray the glue and seals without stopping the machine and also automatically raise and lower speed when exchanging the core.
3.When change the core, the machine will be tight first and loosen later to avoid dropping off the roll core.
4.Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes.
5.Automatic alarm for breaking off of paper.
6.Equipped separate tension control for each unwinding jumbo roll.
7.It is convenient to change the feature to produce any other core pipe winding.
8.Left paper remind after sealing of product for convenient use.
9.Jumbo roll stand is installed by pneumatic.
Video link : https://youtu.be/oinyh6kf1Zo
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
Our factory
Our certification
Company Information
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery anufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
If you need more information about these machine,please feel free to contact me!
Welcome to contact us to get more details !
We can design the machine according to your request.
