New H 20 Timber Beam used for construction made in China

Product Details

Product Description

Product Description
New H 20 Timber Beam used for construction made in China:
Product Details
LAMINATED VENEER LUMBER
Specifications
:H20 beam /H16 beam
2.glue:WBP glue
3.size:200/160*80*1000-12000m
4.usage: for construction

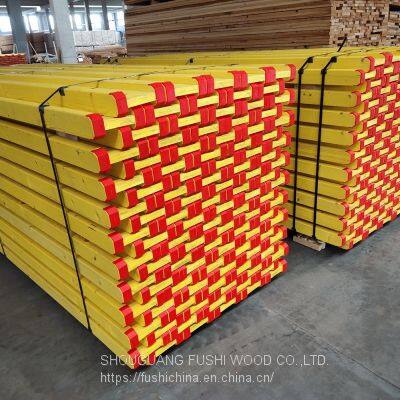

The H20 Beam
Beam
Wooden beam for formwork, consisting of an upper and lower wing and featuring a central section consisting of three layers. The union is designed as a notched and glued joint.
Heads
Fir wood of the highest quality, calibrated with levelled edges and with finger type joints along their length.
Webs
Of a three-layer board with a thickness of 27 mm.
Joint
Notched, finger-type joint between core and wings, throughout their length. High-frequency, high strength gluing.
Anti-humidity treatment
Protective paintwork throughout the beam.
Product Introduction
Lvl main features
Our products H20/H16 Formwork timber beam is composed by following parts:
1) Flange: LVL flange
2) Web: plywood or particle board or LVL web
3) WBP resin
4) Coating with yellow, waterproof; rot-proof and frozen-proof painting.
5) Ends are sealed to protect against moisture and ultraviolet light
Product Parameters

Product Name	solid wood for flange, poplar plywood for web H20 beam
Branding	XINFUSHI
Material	pine wood veneer.
Size Range	Flange:40*80, web:27*150mm
Tolerance	Thickness: ±1mm;Width: ±1mm;Length: -0/+3mm;
Glue	100% WBP phenolic glue
Moisture	below 12%
Port	Qingdao
Package	Standard export packing.Pallet with plastic and metal strips.
Apllication	Export packing,pallets(custom suffocating free), packing boxes etc.

Product Details Show
Advantages
H20 Beam is widely popular for good reason.
Strength and Safety
Dimensional stability and recovery capacity after application of load. High load capacity throughout their length. Protection against humidity, knocks and splintering.
Lightness
Easy handling and quick assembly. Minimum weight.
Economical
Can be used many times. Good ratio between price and uses. Easy storage.
Why Choose Us
Construction Formwork H20 Beam in Standard Size of 200mm Height is a Type of Plywood Formwork Timber Beams Used in Formwork System and Peri Form As Waler Beam and Concrete Slab I Beam for Slab Formwork System, Column Formwork System, Wall Formwork System and Beam Formwork.
Product Processing
Product Packing
FAQ1. Are you a trading company or a factory ?
A: Fushi Wood Group has a whooly owned factory.
Q2. What is your strength?
A: Fushi wood Group. firstly is a trading company, so has a professional team to serve for overseas customers. Meanwhile, Fushi has a wholly owned factory that engaged in production of kinds of high quality LVL.
Q3. What are your main products?
A:The main business of Fushi Wood is the exporting and importing of a variety of man-made boards. LVL, Plywood,MDF and Finger-jointed board, furniture, flooring, logs and other wood products etc.
Q4. Are the samples are available?
A: Yes, the sample is free and freight charge would be collected in your side. But after the order is confirmed, this freight charge could be deducted from the whole payment or another sample that you need could be sent to you next time and the freight charge will be paid by our side.
Q5. What is your quality guarantee?
A: We have 100% quality guarantee to customers. own factory has obtained the Carb certificate.FSC, SGS etc.
