Gantry Flame Metal Pipe Tube Sheet Profile 5 Grooves Portable CNC Robot Plasma Cutting Machine with Bevel Function

Product Description

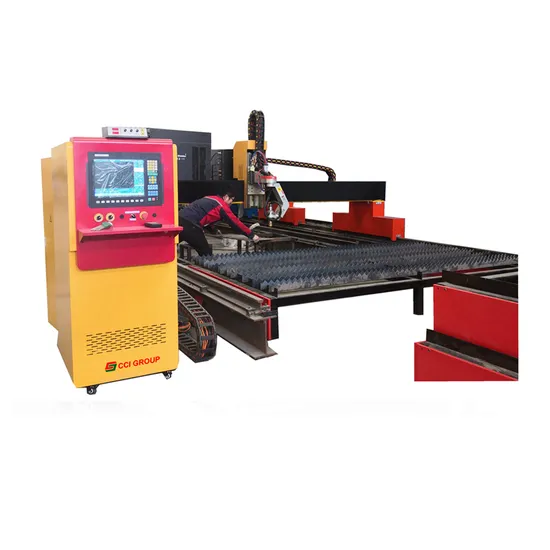

CCI Group Gantry CNC Flame Plasma Cutting Machine
High cutting efficiency, high cost performance and low running cost
High cutting performance for copper/brass, aluminum, stainless steel and carbon steel
Metal Plasma Cutting Machine Application Industry:
Plasma cutting machines are used in Steel, automobile, electricity, boiler, pressure vessel, pipeline, marine, petrochemical, construction, heavy machinery and other fields.
Metal Plasma Cutting Machine Processing Materials:
TApplications primarily suited for cutting stainless, carbon, aluminum and other non-ferrous metals.
5 grooves plasma cutting types
Main Features: 1. Cuts up to 6.6'x20' ( or other customized size) metal sheets/ plates.
2. Energy efficient: Lowest running cost for cutting metal.
3. Capacitive Auto-height adjusting/ manual cutting head.
4. Different power draw (400A 300A 200A 120A 63A).
5. Computer design suit for repeat cutting.
6. Programmable cutting assist gas solenoid.
7. Plasma source.

Technical Parameters

No.	Technology Parameters Name	Technology Parameters
1	Cutting Scope (W*L)	2000mm*6000mm
2	Plasma perforation cutting thickness	≤55mm
3	Plasma cutting torch	1 set
4	Cutting speed	0-8000mm/min
5	Unloading running speed	0-10000mm/min
6	Machine Dimension (W*L)	3000*8000mm

Mechanical Accuracy

Machine Accuracy
Linear positioning accuracy	±0.1mm/10m	Torch travel route	≤100mm
Linear repeated accuracy	±0.4mm/10m	Auto lifting accuracy	±0.5mm
Comprehensive machine accuracy (If cutting 1000*1000mm material)
Length error (four sides)	0.5mm	Intersection deviation	0.5mm
Diagonal deviation	0.5mm	Forward and reverse linear deviation	0.2mm
Original Position deviation	0.3mm	Machine positioning accuracy	0.2mm
Diagonal straightness	0.5mm

Working Condition Requirement

No.	Item	Details
1	Power Supply	220/380V±10% 50Hz±1% Input rate: 5000w
2	Environment Temperature	0-50 centi degree
3	Relative humidity	95% (non-condensing)

Main parts and brand as follows

SpareParts Name	Brand	Origin
7-level precision rack	BQ	China
Lead rail	ABBA	Japan
CNC system	CCI GROUP	China
Servo driver	PANOSONIC	Japan
Servo motor	PANOSONIC	Japan
Plasma power	HYPERTHERM/HUAYUAN	USA/ China
Torch for plasma machine	HYPERTHERM/HUAYUAN	USA/China
Automatic programming & nesting software	FastCAM/ STARCAM	Australia/ China
High strength bearing	NSK	Japan
Arc voltage adjusting control system	STARTFIRE	China

Processing Effects
Main Components
HUAYUAN Plasma Source.

100% (40ºC) rated duty cycle, suitable for work in heavy industry; Adopt gas pressure sensor, the cutting torch can be properly protected when the gas pressure is too low.
Adopt liquid flow sensor, the cutting torch can be properly protected when the liquid flow is too low, and the liquid flow is displayed on the display meter. The gas pre-flow time, gas post-flow time, current up-slope time can be separately set according to the torch cable length;
The plasma gas pressure can be adjusted on the panel, the pressure is displayed on the meter, friendly operation. There is digital communication connector, can be connected with different automation equipment.
With torch monitoring function, warning to change the consumables, to longer the torch working life. Intelligent fan is used to reduce the dust. With automatic protection of over-heating and lack-voltage.
CCI Group Control System
This control system is suitable for all kinds of flame / plasma, high-pressure water jet, laser cutting machine, widely used in metal processing, advertising, stone and other industries.
The system is highly reliable and has the ability to resist plasma interference, lightning strike and surge. The practical flame / plasma cutting process, when plasma processing, automatically completes the corner speed control, and height controller control; remote control can be achieved by wireless remote control.
Arc Voltage Adjusting Control System
After this Arc voltage adjusting control system receives the cutting machine numerical control system's "cutting torch down" signal, or the system calls "positioning cycle start signal", it controls the torch to descend until the positioning switch is triggered, and then controls the torch to rise to the Initial positioning height.

After the positioning is completed, the controller will send a positioning success signal.
Bevel Cutting Structure and Precision Plasma Cutting Head
It has flame and plasma cutting functions.
The NC system can automatically convert the machining program generated by ordinary plane nesting software into groove cutting.
It has the function of turning head error correction
For the workpiece processed twice, it has the function of secondary positioning.
The system is highly reliable and has the ability to resist plasma interference, lightning stroke and surge.
Practical flame / plasma cutting process, automatic corner speed control and height regulator control during plasma processing. Fully compatible with various nesting software, such as starcam, starNEST, FastCAM, etc.

Russian and English operation interface conversion, dynamic graphic display, graphic magnification of 1 ~ 8 times, and automatic tracking of moving points.
Other Plasma Cutting Machine Models
8 Axis Metal Tube Plasma Cutting Machine
Heavy Duty H steel Plasma Cutting Machine
Mechnical Arm Type Plasma Cutting Machine
CCI Laser Machines Series

How to choose the optimum plasma source
Company and Products Advantage:
Delivery time is guaranteed
15000m3 laser equipment processing workshop.
100-150 metal processing machines are inspected and accepted every month.
Reasonable production management process to ensure the machine quality.
110 Professional and technical workers.
Every front-line production worker has undergone strict pre-job training.
One worker only completes one process of product production to ensure the production of high-quality products. Each process is inspected to ensure the accumulative accuracy of the product.
Supports ODM and OEM.
12 technical R&D persons.
We provide different solutions for different industries, so as to meet the technical requirements of different industries as much as possible.
Complete pre-sale service network.
The CCI Group pre-sales consulting team will wholeheartedly provide you with laser machinery consulting, solutions and other services. 86 pre-sales engineers are distributed in all corners of the world, providing different solutions for users in all walks of life.
Perfect after-sales service system.
35 after-sales service personnel with more than ten years working experience will be on standby 7*24 hours, all year round, fully guaranteeing the worry-free use of your products and the stable operation of your business.
2-3 engineers are responsible for one area to ensure the professional and timely debugging work, so that users can put into production as soon as possible. Every year we hold a quality journey, visit new and old users everywhere, help them to check the machine and listen to the actual needs of customers, so as to do a good job of market research for our product technology upgrade.
1. Guarantee for the whole machine: 24-60 months
2. Providing professional service to customers, any call for technical help will be solved in 24 hours
3. Free training, free maintenance and free technical support within warranty period
4. We supply life-long free service in technical upgrading.
