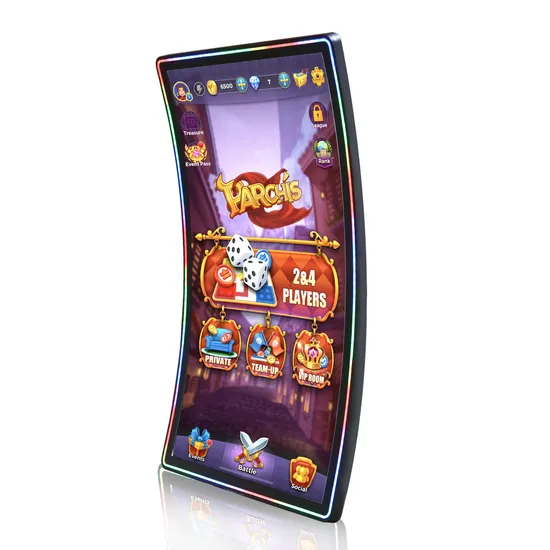

32 Inch 43 Inch 55 Inch Wide Screen Curved Touch Monitor for Casino Slot Machine, Advertising Signage, Kiosk

Product Description

Product Description 32 Inch 43 Inch 55 Inch Wide Screen Curved Touch Monitor for Casino Slot Machine,Advertising Signage, Kiosk

Original Factory OEM ODM 32 Inch 43 Inch 55inch Curved Touchscreen Display Customized What We Can Offer
Head Sun do customize 32inch, 43inch, 55inch straight and curved monitor with touch displays at any size. Displays are LED-backlit and low-power-consumption. They have a slim-bezel design and a long life expectancy. 32", 43" 55" Curved Surface Touch Monitor for gaming machine, Kiosk and Banking industry can be ordered in any quantity-standard or custom-sized.

Products Name	43'' 4K Curved Touch Screen Display
Item	ZL-CT43'01
LED Data	View Dim.	963.6(H)mm×557.9(V)mm
	Display Scale	16:09
	Backlight	LED
	Lifespan	More than 50000H
	Resolution	3840×2160
	Brightness	300cd/
	Contrast Ratio	1300:01:00
	Response Time	8ms
	Point Distance	0.2451(H)mm×0.2451(V)mm
	Color	16.7M
	View Angle	H/S:178°/178°
Touch Screen Data	Touch Method	Projective G+FF capacitive touch technology
	Response Time	<5ms
	Touch Point	10 Points touch (Can be Scale in Size)
	Touch Recognition	>1.5mm
	Scanning Frequency	200HZ
	Scanning Accuracy	4096 x 4096
	Communication mode	Full Speed USB2.0,USB3.0
	Theoretical Clicks	50000000 times
	Working Current /Voltage	180Ma/DC+5V+/-5%
	Anti-Optical Interference	Screen working normal under sunlight, lamp etc.
	Touch Data Output Mode	Coordinate Output
	Hardness	7H Hardness Tempered Glass Surface
	OS	Android/ Windows
	Driver	Drive free, plug and play
Port	HDMI Input	1pc
	Touch USB	1pc
	DC Power	1pc
Power Supply	Working Voltage	AC220V, 50/60Hz
	Max Consumption	135W
	Standby Consumption	0.8W
Operating Environment	Temperature	0~40ºC
	Humidity	10~90%RH
Screen Performance	Products Size	980.9.2mm*572mm*127.4mm
	Accessory	Adapter

Features 1. The curved touch display product series are standard equipped with the most advanced projection capacitor (GFF) touch technology, which can support 10 touch points. It has the advantages of fast response speed, high touch accuracy, and no touch pressure. Compared with other touch technologies, the touch operation experience is better. For special applications or particularly harsh use environments, we can provide touch display products with customized enhanced projection capacitor screens that meet industrial requirements.2. One-time molding through the injection molding process, high precision, and good consistency. Seamless assembly with projection capacitor screen to achieve dustproof and waterproof performance; The design realizes the flat assembly with various cabinets, which makes the installation more convenient and has a better visual effect; The front frame component is composed of a plastic middle frame and the capacitive touch screen is fixed with screws between the iron plate, which abandons the traditional way of bonding and fixing the touch screen and LCD with double-sided adhesive tape, which not only simplifies the production process but also greatly improves the convenience of component replacement and the maintainability of the whole machine.3. The color is exquisite and gorgeous. It can restore the real color under different lighting conditions to meet the needs of color restoration in different industries.4. Stronger structural compatibility, compatible with various stand-alone versions, Android network versions, x86 and other different schemes, capacitance G + G, and non-touch (optional).5. Compact structure design, suitable for installation in various ways, metal shielding structure, can prevent external electromagnetic interference and no radiation.6. Ultra-thin design, novel and beautiful appearance, fast and simple installation.7. Wide voltage range, can work normally at AC100 ~ 240V (50 / 60Hz).8. Energy saving, environmental protection, low energy consumption, low calorific value, suitable for long-time continuous work.
Applications
Company Profile Head Sun Co., Ltd is a new hi-tech enterprise, which is specialized in manufacturing Touchscreen and LCD display with more than 11 years' experience. We can do customized touch panel, lcd display, lcd touch display products according to the solution and drawing of customers to achieve various structures of products as your requirement.Head Sun was established in 2011, which is located in Hua Feng Tech park, Shenzhen City, with 200 employees & an area of 3,500 square meters for factory and office. Dust-free purification workshop.
Certifications & Exhititions
Packaging & Shipping
FAQ Q 1. What service do we offer?Answer: We are a professional manufacturer of Projected Capacitive Touch Panel/Screen and can help you design and do customized Touch Panel.Q 2. How long could I get the reply of my inquiry?Answer: Buyers will receive a answer within 12 hours.Q 3.What is the delivery time?Answer: For samples:15-20 days after getting the sample fee (Professional Custom-made) For cargo:25-30 days after the receipt of funds.Q 4.What is the payment term?Answer: T/T, Paypal and Western union etc. For samples: payment in advance.For mass production: 50% deposit and 50% balance before shipmentQ 5. How do you control the quality of the items?Answer: Each product will be strictly tested one by one before shipping out.Q 6. How long is the warranty?Answer: Generally the warranty period is one year. It depends on different products.Q 7. How is after sales service?Answer: Our sales & engineer will provide the sustained support, guidance of techniqueQ 8.What method of packaging do you use?Answer: The packing with anti-static bag+ bubble bag +foam box +strong outer carton.Q 9.What kind of the transportation do you offer?Answer: For small order & quantity, the goods will be shipped by the express like DHL, TNT, Fedex, UPS,EMS with customers own account.For cargo with the large packing, Adopting Air or sea and freight collect also from the buyer.
