Skid Steer Attachment Boom Mower

Product Description

Product Design Concept 1. The wide range of working widths allows the machine to be adapted to the working conditions and the type of terrain
2. 1200mm working width, feature high horizontal reach up to 2800 cm, Possibility of working within the inclination of + 90°and-45°
3. Hydraulic transmission, flexible layout, easy control, and compact structure
4. The operation can be completed directly in the cab through the electronic control handle, which is simple and comfortable.

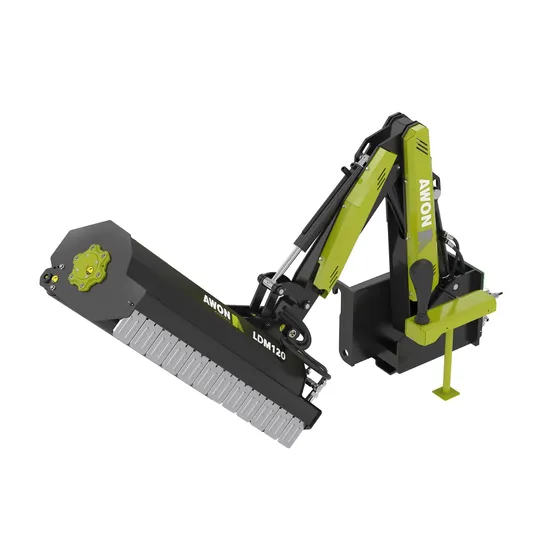

Working Principle & Function LDM120 Telescopic Flail Mower has a hydraulically driven, extendable telescopic dipper arm, with which the mower has high work reach of 2800mm. As standard the control of the arm is done with the use of cable control panel, equipped with levers and a joystick. The head is attached to a mechanical arm allowing you to swing the mower beyond your up to 90 degrees for hedge or hillside work or down 45 degrees for ditch or bank work.

Type	LDM120
Folding size(1-H-G)mm	750*1050*1500
Cutting depth(cm)	3~6
Hydraulic connection	G1/2=4,G3/8=1
Working width(mm)	1200
Machine weight(kg)	350
Morking speed(km/h)	5~7km/h
Maximum working size(A)mm	2850
Maximum working size(B)mm	2850
Maximum working size(C)mm	1950
Maximum working size(D)mm	1950
Number of blades	22
Cutter shaft diameter(mm)	Ø305
Hydraulic flow mpa	30L/min(16Mpa)

AWON GROUP founded in 2006 which headquarter in the Netherlands is an integrated solution provider for modern Agricultural, Orchard and Gardening applications. With much effort of these years, AWON machinery gradually grows up to a pioneer in modern agriculture from designing to manufacturing a wide range of agricultural implements which used in commercial crops and field crops, including: Mower, mulcher, wood shredder, cotton baler, straw baler etc. With AWON GROUP's excellent design concepts and reliable product performance to help users improve operating efficiency, reduce usage costs, and increase profits, thereby protecting the ecological environment and achieving sustainable development of agriculture and nature.
The following are our patent certificates: Design Patent (mulcher), Utility Patent (branch mulcher, mulcher blades, pick-up branch mulcher and telescopic mower)
The following are our original hand-painted drawings, originality has always been our pursuit!
