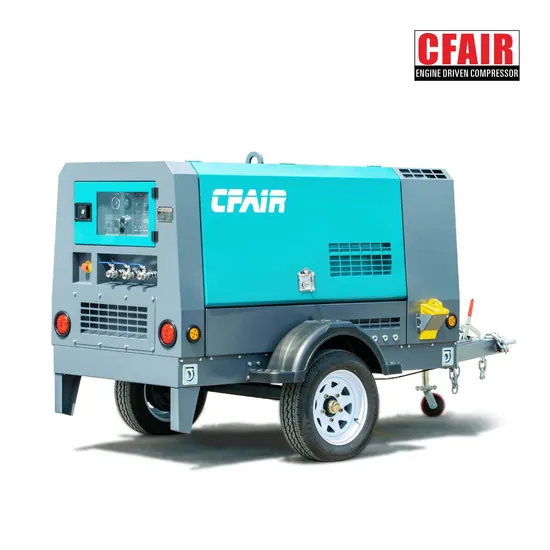

Popular Model 185cfm Portable Diesel Air Compressor for Sale
| US$7,543.00-9,051.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CF185M-7
Lubrication Style
Lubricated
Cooling System
Water Cooling
Power Source
Diesel Engine
Cylinder Position
Horizontal
Structure Type
Closed Type
Installation Type
Movable Type
Type
Twin-Screw Compressor
Free Air Delivery
185 Cfm / 5.2 M3/Min
Working Pressure
7 Bar / 101.5 Psi
Air End Brand
Germany Brand
Air Outlets
3 X 3/4′′
Dimensions
3180 X 1630 X 1600 mm
Trailer
Single Axle with 2 Wheels
Weight
1120kg
Tyre
Tubeless Type
OEM
Available
Color
Green/Blue/Yellow/Red
Delivery Time
30 Days
Transport Package
International Export Standard
Specification
185CFM @7bar
Trademark
CFAIR
Origin
China
HS Code
8414804100
Production Capacity
1000
Product Description
| MODEL | CF100M-7 | CF185M-7 | CF275M-7 | CF400M-7 | CF390M-10.5 | CF830M-10.5 |
| Air End Type | Rotary Twin Screw, Single stage | Rotary Twin Screw, Single stage | Rotary Twin Screw, Single stage | Rotary Twin Screw, Single stage | Rotary Twin Screw, Single stage | Rotary Twin Screw, Single stage |
| Air Outlets | 3/4'' x 2 | 3/4'' x 3 | 3/4'' x 2 + 1-1/4'' x 1 | 3/4'' x 3 + 2' x 1 | 3/4'' x 3 + 2' x 1 | 3/4'' x 1 + 2' x 1 |
| Free Air Delivery | 100 CFM / 2.8 m3/min | 185 CFM / 5.2 m3/min | 275 CFM / 7.8 m3/min | 400 CFM / 11.2 m3/min | 390 CFM / 11 m3/min | 830 CFM / 23.3 m3/min |
| Working Pressure | 7 bar / 101.5 psi | 7 bar / 101.5 psi | 7 bar / 101.5 psi | 7 bar / 101.5 psi | 10.5 bar / 152.25 psi | 10.5 bar / 152.25 psi |
| Fuel | Diesel | Diesel | Diesel | Diesel | Diesel | Diesel |
| Emission | China Stage II | China Stage II | China Stage II | China Stage II | China Stage II | China Stage II |
| Engine Type | 4 cylinder, Direct-injection | 4 cylinder, Direct-injection | 4 cylinder, Direct-injection | 4 cylinder, Direct-injection | 4 cylinder, Direct-injection | 4 cylinder, Direct-injection |
| Displacement | 2.771 L | 2.771 L | 2.771 L | 3.9 L | 5.9 L | 8.9 L |
| L X W X H | 3066*1456*1587 mm | 3180*1630*1600 mm | 3530*1760*1770 mm | 4155*2025*1890 mm | 4370*1950*2355 mm | 3066*1456*1587 mm |
| Weight | 900 kg | 1120 kg | 1450 kg | 1850 kg | 2070 kg | 4400 kg |
| Note: Please feel free to contact us if any more customized requirements ! | ||||||
Hangzhou Caifull Precision Machinery Co.,ltd. (CFAIR COMPRESSOR), headquartered in Hangzhou, is a professional engine driven air compressor manufacturer dedicated to offering the world-leading diesel compressors in the world. Since 45 years of industry accumulation, we serve customers world wide. We maintain the close relationship with customers and market. With your valuable suggestions, we keep on growing and innovation for making diesel air compressor on top.
Developers travel around the world to investigate the market and develop machines that reflect the needs of the global market according to the research results. In recent years, compliance with new emission standards and regulations, taking into account environmental impacts has become the basis for this research and ensuring that all compressors meet the re-established standards for each standard.
In addition, we develop environmentally friendly and user-friendly, safe and durable machines that are easy to maintain at the front line of design.
