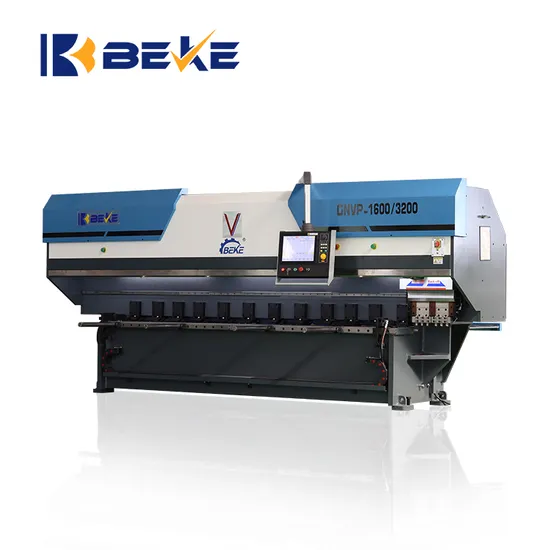

Vertical 1600mmx3200 Grooving Machine Automatic Groover for Sale
Basic Info.
Model NO.
GNVP 1600/3200
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Mid-Range CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Model
Gnvp 1600X3200
CNC System
Japan Abel
Hydraulic Control System
Taiwan Yuken
Servo Motor and Driver
Japan Mitsubishi
Oil Cylinder Sealing Element
Japan Nok
Single/Double Pole Air Switch
Korea Ls
White Steel Knife
Yishengbai
Linear Guide Rail
Taiwan Hiwin
Transport Package
Container Directly
Specification
6350*2300*1700mm
Trademark
BEKE
Origin
China
HS Code
8462490000
Production Capacity
50 Set/Month
Product Description
Product DescriptionProduct Parameters
| Model | GNVP-1600X3200 | ||
| Machining Capacity | Plate | Material | Stainless steel, iron plate, copper, ect. |
| Length | 3200mm | ||
| Width | 8-1600mm | ||
| Thickness | 0mm-8mm(Sheet flateness less than 3mm) | ||
| Minimum dege | White steel knife 8mm alloy knife 10mm | ||
| CNC Specifics | Control Method | 4 axes CNC controlled X, Y, Z | |
| Display | 15-inch high-definition LCD touch screen | ||
| Storage Capacity | 99 groups can be stored, and 999 small V ports can be slotted in one group | ||
| Transfer Method | Ball screw/linear guide/rack and pinion | ||
| Machining Speed | X Axis Forward Speed | 4-38m/min(Stepless speed regulation) | |
| X Axis Backward | 4-120m/min | ||
| Tool Holder(Y1 axis) and end pressing material (Y2 axis) | 0.5m/min | ||
| Feeding(Z axis) | 6m/min | ||
| Machining Precision | Front and rear of planer head(X-axis) | 0.5mm | |
| Tool holder up and down(Y-axis) | 0.01mm | ||
| Feeding(Z axis) | 0.02mm | ||
| Driving Mode | Planer head(X-axis) | 5kw Mitsubishi Servo Motor | |
| Tool holder up and down movement(Y-axis) | 0.4kw Mitsubishi Servo Motor | ||
| Feeding(Z axis) | 1kw Mitsubishi Servo Motor | ||
| Clamping Device | Hydraulic clamping system | 1.5kw/8L/10Mpa | |
| Dimension | Length | 4800mm | |
| Width | 2850mm | ||
| Height | 2100mm | ||
| Weight | 9000kg | ||
| Table Flatness | ±0.02mm/M | ||
| Main Power | 380V/50HZ/3PH | ||
