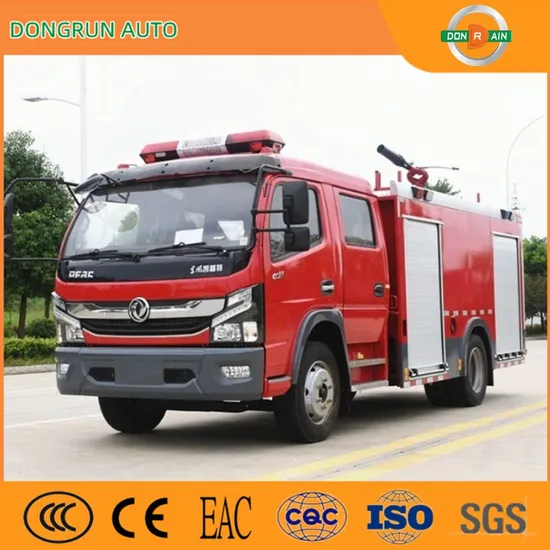

Dongfeng 4X2 6X4 Firetruck with High-Capacity Water Tank

Product Description

Product Description
Fire fighting truck is the emergency rescue fire truck which could be water fire truck or water and foam fire truck, it could be equipped with different brand of chassis to reach different demand.
Fire fighting truck is special purposed vehicle to carrying out the task of conflagration, but also with the usage of emergency rescue. It could be transport the firemen to the fire field and provide different kinds of rescue tools.
The normal fire fighting truck could be divided into: water tank fire truck, water and foam tank fire truck, pumping fire truck, elevated fire truck, scaling ladder fire truck, etc.

Vehicle description
Overall dimension	6965*2262*3150mm
GVW	10200kg
Curb weight	5880kg
Chassis brand	DONGFENG
Traction type	4*2, left hand drive
Chassis description
Chassis model	CM92-301
Cab	Single cabin with flat roof, two seats with AC
Wheelbase	3800mm
Tire specification	7.50R16
Tire quantity	6+1 units
Engine	Engine model	B125 33
	Emission level	Euro 2
	Displacement/output	3900ml/92kw
	Horse power	125hp
Gear box	Model	FAST-6MT
	Number of gears	6 forward gears& 1 reverse
Brake system	Full air brake, power steering, spring brake, exhaust brake
Axle	Front	2.2T
	Rear	5.5T
Suspension	Front	Leaf spring
	Rear	Leaf spring
Fuel tanker	Type	Steel fuel tank, with lockable cap
	Capacity	160L
Up-parts description
Tanker capacity	Water tanker		4cbm
	Foam tanker		/
Standard configuration	1 set manhole with quick lock and open device; 1 set overflow device; 1 set fluid level gauge; 1 set drain outlet with manual controlled.
Fire pump	Model			CB10/30, normal pressure pump
	Flow			30L/S
	Pressure			1.0Mpa
	Suction depth			7m
Fire monitor	Model			PS8/20W
	Flow			20L/S
	Pressure			0.8Mpa
	Range			≥50m
	Rotation angle			Horizontal 360° Pitch -35°~70°
Other configuration	Equipped with sandwich PTO, pipeline system; Equipped with equipment box and pump box; Equipped with flip pedal and electric system. Other equipment.
