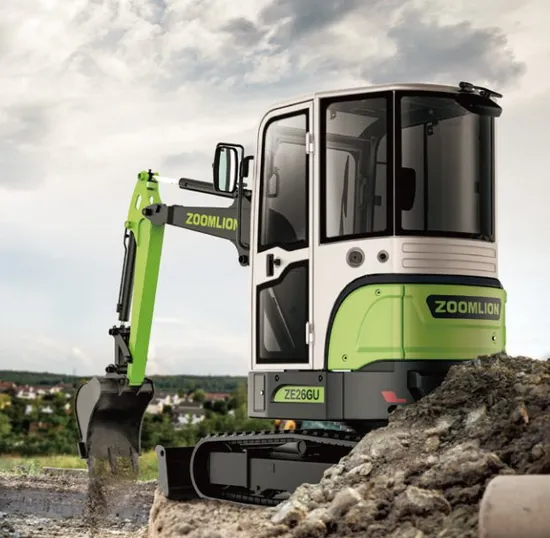

Perfect for Urban Projects: Introducing The Ze26gu Canopy

Product Description

Detailed Photos


Product Parameters

Items

ZE26GU

Basic Technical Data	Operating Weight	2650 kg
	Standard bucket capacity	0.08 m³ ( 0.037 m³ - 0.15 m³ )
	Slewing Speed	9 r/min
	Traveling Speed(high/low)	4/2.5 km/h
	Max. Drawbar Pull	23.9 kN
	Digging Force of Bucket	23.1 kN
	Digging Force of Stick	13.8 kN
Engine	Engine Manufacturer	Kubota
	Engine Model	D1105
	Rated Power	15.4 kW / 2400 rpm
	Displacement	1.123 L
	Emission Standard	EU Stage V / Tier 4F
Dimensions	Length	4262 mm
	Width	1500 mm
	Height	2475 mm
	Boom Length	2100 mm
	Stick Length	1300 mm
	Tail Slewing Radius	750 mm
	Track Gauge	1200 mm
	Length of Track On Ground	1535 mm
Operating Range	Max. Digging Reach	4909 mm
	Max. Digging Reach at Ground Level	4794 mm
	Max. Digging Depth	2881 mm
	Max. Digging Height	4412 mm
	Max. Dumping Height	2976 mm

FAQ
1. who are we?We are based in Shanghai, China, start from 2000,sell to South America(25.00%),Mid East(20.00%),South Asia(15.00%),North America(15.00%),Domestic Market(15.00%),Southern Europe(10.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Truck Cranes, Excavators, Loader, Forklifts, Concrete Pump Truck4. why should you buy from us not from other suppliers?The company is mainly engaged in the sales of domestic and foreign construction machinery, with a sales revenue of 7 billion yuan from 2008 to 2022, and can provide comprehensive after-sales services both domestically and internationally;5. what services can we provide?Accepted Delivery Terms: null;Accepted Payment Currency:null;Accepted Payment Type: null;Language Spoken:null
Shanghai Weed is the top professional equipment solution provider of construction machineryin Shanghai, China. With the first heart and pursuit of ten years, adhering to the customer-ori.ented. Dedicated enthusiasm to provide users with the best service, and strive to providehigh-quality Chinese construction machinery for the world.
From 2008 to 2022, sales of US $1 billion have been reached, which can provide perfectafter-sales service at home and abroad: In 2017, in order to meet the demand for constructionmachinery equipment and spare parts in the Southeast Asian market, an overhaul plant and aspare parts center were set up in Yangon. Mvanmar. with a rental service center of 2 millionUS dollars for construction machinery equipment. At the same time, it provided maintenanceservices for series of products, supply of spare parts, rental services for equipment, supply ofcomplete machines and used equipment. Through the national "One Belt One Road" develop-ment strategy, we seek common development under the premise of respecting local cultureand contributing to the community.
Leading product coverage:11 categories/56 product series/nearly 600 varieties
