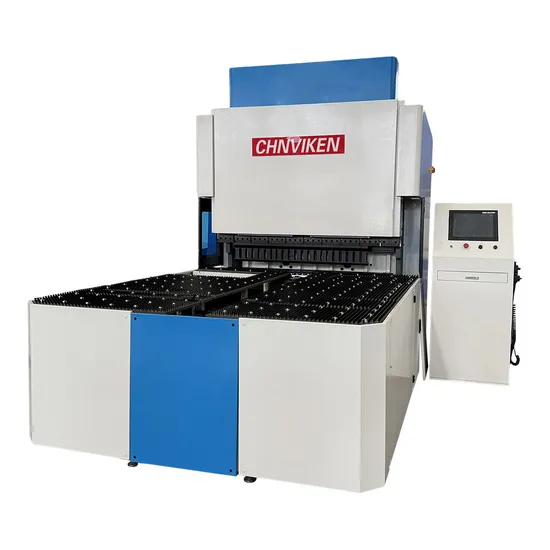

High Productivity Intelligent Flexible Bending Center Sheet Metal Panel Bender Aluminium Automatic Panel Bending Machine

Product Description

Product Description * Industry 4.0 architecture, which can be upgraded smoothly.
* Fast speed, only 0.2 seconds per time.
* Rapid prototyping of sheets, high consistency.
* Low power consumption.
* Simple maintenance and low cost.
* High degree of automation, simple operation, low labor requirements.
* No need for molding, complex shapes (right angles, non-right angles, etc. folded up or down) can be
freely designed and produced at any time.
* Applicable to a wide range of materials, mainly stainless steel, cold-rolled sheet, etc.
* Compatible with various loading and unloading methods: manual loading and unloading, self-propelled
robotic arm loading and unloading, docking robotic arm loading and unloading are optional.
* Viken intelligent bending center has rich software and hardware interfaces, laying a good foundation for
intelligent factories.
* The control system realizes 15-axis concurrent linkage in the true sense, the bending action is smooth,
and the mechanical operation is highly coordinated.
* The unbalanced load detection system can effectively protect the machine and the sheets.
* The panel thickness detection system can effectively protect the machine and reduce the waste of sheets.
* The cloud operation and maintenance management system can monitor the operation of the machine
in real time, and can carry out all-round customized management of the company's business.
* Friendly man-machine interface, easy to understand, flexible programming.
* For sheets with non-standard size, different positioning datums can be selected according to the shape
of the sheets, and the shearing error of the sheet is controlled on the first bending edge to ensure the
dimensional accuracy after forming.


Product Parameters

Technical parameters
Feeding structure	Pressing arm
Work table structure	brush
System minimum accuracy	0.001mm
Max bending speed	0.2 second/time
Max feeding speed	90m/min
Max.bending width	2000mm
Max.Bending size	L 2000mm X W 1250mm
Max. Bending height (The maximum bending height after customization can reach 300mm)	170mm 300mm(customizable)
Min. Bending height	3mm
Min.arc radius	0.5mm
Rated power	380V
Motor power	79KW
Average power	About 2.8 KW
Noise	About 50 dB
Machine size	L510cm X W265cm X H330cm
Total weight	About 16 tons
User operating environment	Win7 or above system
Max. Bending width	UTS 515N/mm2 304 stainless steel 1.5mm UTS 410N/mm2 cold panel 2.0mm UTS 265N/mm2 aluminum panel 3.0mm
Min. Panel width	0.35mm
Four side forming min. Inner size	About 140mmx190mm( excluding inverted folded side)
Double side forming min. Inner size	About 140mm
Bending angle	0-180 degree
Axis	15

Main Part Brand and Specification

Operation environmen	Viken Intelligent	Win7 or above/LINUX
CNC Control system	Viken Intelligent	Viken independently developed a multi-axis concurrent linkage CNC system.
servo motor	Joint R&D	Joint R&D of full closed-loop system, perfect match with Viken control system, the highest efficiency in the industry. Single max. Motor power 22KW
Screw rod	Nanjing Technical Equipment	The domestic top screw manufacturer Nanjing Technology 8020 heavy-duty grinding grade screw has more stable transmission and higher precision.
Bearing	NACHI	Japan NACHI original high-load ball screw injection molding machine special bearing 60TAF13X, the bearing ball diameter is up to 16mm, and each axis has 12 bearings.
Line rail	Nanjing Technical Equipment	Nanjing Technical heavy-duty high-precision P3-level 55 roller-type linear guide has greater bearing capacity and higher precision.
Lathe bed	Viken Intelligent	Viken independently designed the high-grade casting body, using high-grade QT500-7 and gray iron 250 castings to effectively ensure the stability under high tonnage impact force
Tools	Viken Intelligent	Viken's patented tool, with carburizing treatment process, high-frequency quenching and overall quenching and tempering, More wear-resistant, longer service life
Reducer	Joint R&D	Adopt high-precision helical gear planetary reducer, with stronger carrying capacity
Coupling	TECMEN	Sino-German joint venture brand
Electrical components	/	French Brand
Oil system	Taiwan Yuxiang	Taiwan brand
