Fruit Juice Clarification Centrifuge Separator

Product Description

Why choose us? 1. FIVEMEN has been engaged in the purification technology and its application for more than decades. We have our own R&D team, performing continuous product research and improvement from time to time.
2. Our products are certificated by the most prestigious national and international institutes.
3. Each of the production process is conducting under the strict quality control system. Our QC inspects each lot of the incoming material and the finished products carefully, so that we can supply the best products for customers.
4. From the design to the producing, each procedure is controlled strictly, so we can control the product costs optimally, and offer products with the best quality and the most competitive price. Win-win is our ultimate purpose.
Product Description

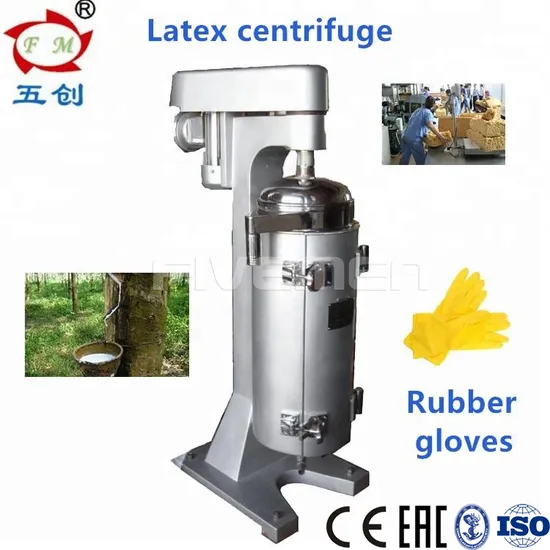

Tubular centrifuge has high performance of separate factor, high capacity, and account for small area and easy to handle.
It has been widely used in pharmaceutical, health food, drinks, juice and beverage ,chemical industries to
separate the liquid-solid or liquid-liquid-solid materials. It is an ideal centrifuge take advantage of centrifugal
methods, the minimum granules is 1 um, which is suitable for distill, condense and clarify the material has small
gravity difference, small and few solid granules and high erosion products.
For the three phase GF grease separator which can separate the grease from the water and solid impurities.

Technical parameters
GF model: Liquid with big density forms the outer liquid circle, while liquid with small density forms the inner
circle. Then liquid will flow out of the upper outlet accordingly, and those little solid will be deposited on the drum
wall, and be removed by manual after machine stops.
GQ model: Solid particles with big density are gradually deposited on the drum's inner wall, and forms sediment
layer, after machine is stopped, is removed by manual. While the clarified liquid flows out through the outlet on
the upper of the drum.

Model	GQ75	GQ105	GQ145
Drum speed(r/min)	20000	16000	14000
Max centrifuge force(R.C.F)	16700	15050	15900
Drum inner diameter(mm)	75	105	145
Drum effective length(mm)	285	742	730
Solid volume in drum(L)	2	6	9
Stuff inlet pressure (kg)	>1.5	>1.5	>1.5
Capacity(water flux)(L/h)	20~200	20~1200	500~1500
motor powder(KW)	1.5	3	3
Dimensions(mm*mm*mm)	660*390*1200	760*450*1680	890*580*1670
Stuff inlet diameter(mm)	12	12	12
liquid outlet diameter(mm)	32	38	32
liquid outlet height(mm)	630	880~940
