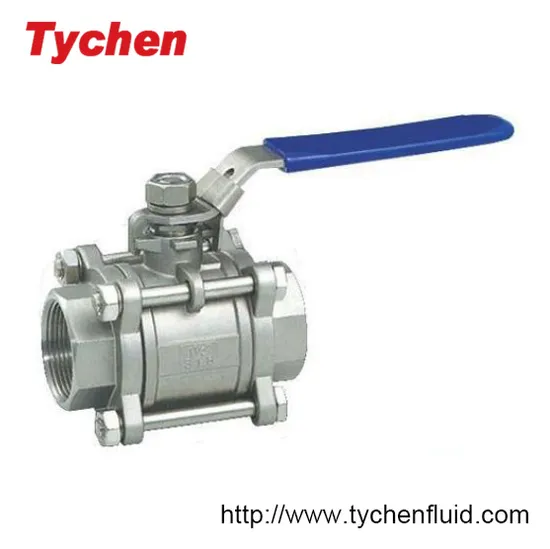

Manual Handle 3PC Stainless Steel Ball Valve Thread Bsp NPT
| US$51.65-1,747.06 | 1 Piece (MOQ) |
Basic Info.
Connection Form
Thread
Driving Mode
Manual
Nominal Pressure
PN1.0-32.0MPa
Channel
Straight Through Type
Structure
Floating Ball Valve
Type
Floating Ball Valve
Function
Blow-Down Valve
Temperature
Normal Temperature
Application
Industrial Usage, Water Industrial Usage, Household Usage
Valve Port
Full Port
Working Pressure
1000wog, 1000psi, Pn63
Working Temperature
-20ºC ~ 180ºC
Body Material
CF8, CF8m, SS304, SS316, Wcb
Ball Material
CF8, CF8m, SS304, SS316
Seat Material
PTFE
Mounting Pad
ISO5211
Thread Type
Bsp/BSPT/NPT
Casting Technology
Investment Casting
Stem Type
Blow-out Proof Stem
Handle
Locking Device Handle
Thread Type Standard
ASME B1.20.1 (NPT), DIN 259/DIN 2999, BS 21, ISO 2
Transport Package
Carton Box or Plywood Case
Specification
DN10-DN100
Trademark
TYCHEN/OEM
Origin
China
HS Code
8481804090
Production Capacity
50000pieces/Month
Product Description
Manual Handle 3PC Stainless Steel Ball Valve Thread BSP NPTProduct Introduction Quick open and close, less flowing resistance. PTFE sealing, perfect sealing, hight temperature, corrosion resistance,
acid and alkali resistance. The main features of the valve itself is compact, easy operation and maintenance for water,
acids and natural gas general working media.
Product Specification
| 1. SIZE: DN15-DN100 (1/4 to 4 inch) |
| 2. Material: CF8,CF8M,WCB |
| 3. Pressure: 1000 WOG |
| 4. Connect end: socket weld |
| 5. Thread ends: socket weld |
| 6. Seat: PTFE/RPTFE |
| 7. Body & Cap: Investment Casing |
| 8. Test:100% tested under water and gas |
| 9. ISO and CE Certification |
| 10. Media: water,oil,gas |
| 11. Applicable temperature: -40C~180C |
| 12. Locking device: Optional |
| 13. Blot-out proof stem |
| 14. All size are full port |
| 15. Testing according to API-598 |
| 16. Anti-static debices for ball-stem-body |
| Item | Part | Material | ||
| 1 | Body | ASTM A351 CF8M | ASTM A351 CF8 | ASTM A216 WCB |
| 2 | Cap | ASTM A351 CF8M | ASTM A351 CF8 | ASTM A216 WCB |
| 3 | Ball | ASTM A351 CF8M | ASTM A351 CF8 | ASTM A216 WCB |
| 4 | Seat | PTFE | PTFE | PTFE |
| 5 | Stem | ANSI 316 | ANSI 304 | ANSI 304 |
| 6 | Thrust washer | PTFE | PTFE | PTFE |
| 7 | Packing | PTFE | PTFE | PTFE |
| 8 | Gland Nut | ANSI 304 | ANSI 304 | ANSI 304 |
| 9 | Handle | ANSI 430 | ANSI 430 | ANSI 430 |
| 10 | Washer | ANSI 301 | ANSI 301 | ANSI 301 |
| 11 | Nut | ANSI 304 | ANSI 304 | ANSI 304 |
| Size | d | S | L | H | W | D | I | |
| 1/2" | DN15 | 15 | 27 | 70 | 55 | 105 | 22.2 | 9.5 |
| 3/4" | DN20 | 20 | 32 | 78 | 62 | 110 | 27.6 | 12.5 |
| 1" | DN25 | 25 | 39 | 86 | 73 | 120 | 34.3 | 12.5 |
| 1-1/4" | DN32 | 32 | 49 | 104 | 85 | 135 | 43.1 | 12.5 |
| 1-1/2" | DN40 | 38 | 54 | 110 | 90 | 165 | 49.2 | 12.5 |
| 2" | DN50 | 50 | 67 | 130 | 100 | 170 | 61.7 | 16 |
| 2-1/2" | DN65 | 65 | 87 | 168 | 140 | 200 | 74.4 | 16 |
| 3" | DN80 | 78 | 98 | 192 | 145 | 215 | 90.3 | 16 |
| 4" | DN100 | 100 | 123 | 235 | 155 | 300 | 115.7 | 19 |
