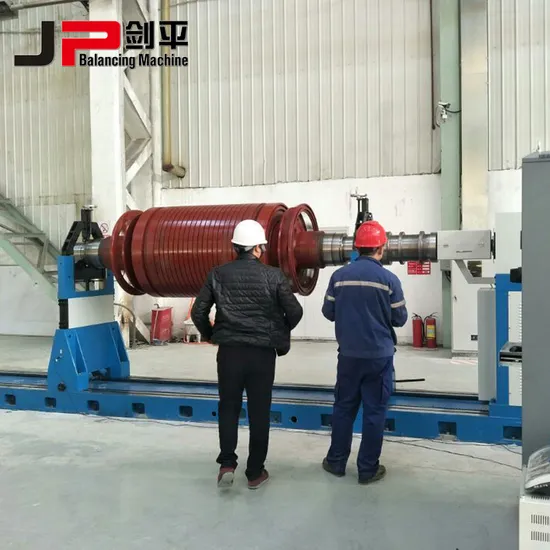

Large Sized Motor Rotor Generator Rotor Dynamic Balancing Machine
| US$50,000.00-100,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
PHW-10000/20000
Max Diameter of Workpiece
2400mm
Mass Scope of Workpiece
20000kg
Type
Balancing Machine
Maxcapacity
<1000KN
Accuracy Grade
0.5
Load Way
Electronic Load
Loading Method
Dynamic Load
Display
Digital
Control
Computer Control
Weight
>2000Kg
Power Source
AC380V
Oil Cylinder Position
Under
Length
4200 mm
Width
1200 mm
Height
2300 mm
Gross Weight
5000 Kg
Certificate
CE, ISO, SGS, BV. ISO9001: 2008 CE SGS
Delivery Time
25 Days
Transport Package
Packed in Fumigated Wood Box
Specification
4200*1200*2300 mm
Trademark
JP Balancer
Origin
Shanghai China
HS Code
90311000
Production Capacity
1000 Sets/Month
Product Description
Production Description
Special designed brackets can effectively transmit mechanical force
The durable and reliable sensor possesses high sensitivity
The permanent calibration brings high accuracy
Driven by universal coupling,transmit the power steadily
Applicable to rotors which can't be driven by belt or need large power
Advanced electrical measuring system and friendly man-machine interface Range of Application 10000/20000kg Universal Joint Drive Balancing Machine (PHW-10000/20000) isalso mainly used in checking the balance of rotatable bodies such as good-sized motors, spindles of machine tools, blower, centrifuges, generator rotor , clinopodiums, pump impeller. drying cylinder. ceramic machinery,rollers,rubber sticks,etc.. Driven by gear box universal coupling , equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. With wide speed range,large driving power, high precision and easy operation etc Special Features The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.
| Technical data at a glance | PHW-10000 | PHW-20000 |
| Mass Scope of Workpiece (kg) | 10000 | 20000 |
| Max Diameter of Workpiece (mm) | 2800 | 2800 |
| Distance Between Two Support Bearings (mm) | Min:450 | Min:450 |
| Journal Diameter Scope of Workpiece (mm) | 60~400 | 60~400 |
| Max Distance between Driving Flange and Right Bearing Support (mm) | 3600 | 3600 |
| Rotation Speed of the Main Axis (r/min) | 195/336/561/916/1374 +Stepless speed regulation | 195/336/561/916/1374 +Stepless speed regulation |
| Motor Power (kw) | 30 Frequency conversion | 55 Frequency conversion |
| Torque of Universal Joint Shaft (N@m) | 2250 | 5000 |
| Min Achievable Residual Unbalance Amount (emar) | 1g. mm/kg | 1g.mm/kg |
