Summer Cooling Jacket Fan Clothes Fan USB Small Air Cooling Fan

Product Description

Jacket Cooling Fan - Cooling Clothing Fan for SummerThe Jacket Cooling Fan is the perfect solution to keep you cool during the hot summer months. It is a cooling clothing fan specifically designed to be worn over any type of clothing. The fan runs on a voltage of 5V and produces less than 40DB of noise. It is also customizable with a logo of your choice and has a life span of up to 5000h. Enjoy a cool summer with the Jacket Cooling Fan!
Dimension
Summer Cooling jacket fan Clothes Fan USB Small Air Cooling Fan
1. The fan fixed ring, screw out from the fan.
2. The air conditioning clothes, there are two holes located in the left waist and right waist, each 1 hole, put the fan inside the hole of the clothes.
3. Use the fixed ring of the fan, from the inside of clothes, screw into the fan tightly.
4. The 2 in 1 fan connection cable, with the plug to connect, and then connect to the battery.
5V fan with USB switch cable, connect to power bank;
7.4V fan or 12V fan, with DC cable, connect to 7.4V / 12V battery with temperature controlled function.
Specification

Product name	Cooling fan for air conditioned clothes
Fan size	Outdiameter: 105mm, thickness 45mm,
Fan material	Plastic
Weight	105g/pcs
Blade	9 blades
Motor	Brush Chinese local brand or Imported Japanese brand
Voltage	5V

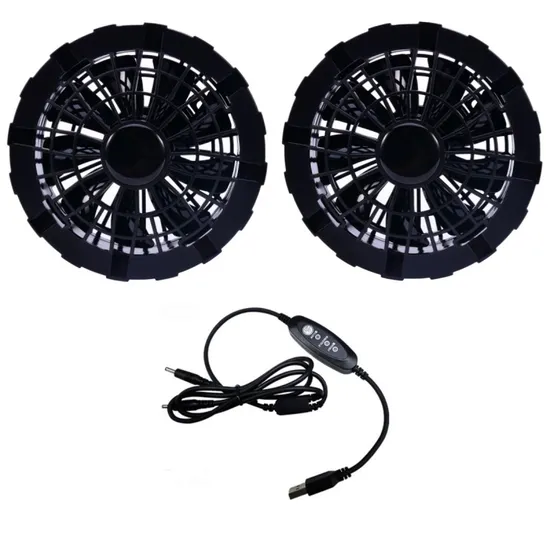

Product list	Fan 2pcs, USB switch cable 1pcs
Certification	KC PSE CE

With imported Japanese brand motor, below fan datasheet

Fan speed / LED light indicator / Rotate speed / Airflow / Noise	Continuous working time
High speed Red light 4500RPM 8.5M/S 46db	continuous blowing 4-5H
Medium speed Blue light 4000RPM 7.5M/S 40db	continuous blowing 10-12H
Low speed Green light 3500RPM 6.5M/S 37db	continuous blowing 20-23H

Application
Follow below step to install fan
Unscrew the front and back cover ----
Place the front cover to the hole of clothes ----
screw the back cover with front cover from inside ----
Plug in DC plug of the cable to the power socket -----
The cable
if 5V with USB plug connect to power bank for use
If 7.4V or 12V or 19V with DC plug connect to battery for use
Company profile
Shenzhen Jinghai Technology Co.,Ltd, found in 2016, located in D Block, Shihong Garden, 40 District, Baoan District, with a factory located in Huizhou city, around 2000 square meters workshop. We specialize in developing and manufacturing intelligent temperature control clothing, heated clothes, air conditioning clothing, fan, electric heating pad, lithium battery pack, digital battery, laptop battery, power bank etc.Our products are widely exported to Japan, South Korea, USA, UK, Germany, Russia, Netherlands, Turkey, Poland, and other countries and regions. Our lithium batteries are UL, CE, SGS, UN38.3 approved. And also our chargers are UL CE approved and CCC from Korea, KETI certificated. Our scientific management, advanced technology, good quality win customers trust. We warmly welcome you to be our customer. We will provide products with best quality and best service to you.
FAQ
Q: 1. Can I have a sample order?A: Sample 1pcs is acceptable.Q: 2. What is the lead time?A: 7~15 days for sample, 25~30 days for bulk order.Q: 3. How do you ship out the goods and how long does it take arrive?A: For small quantity, ship by international express, like UPS FedEx usually take 5~7 working days to arrive. For large quantity, ship by air or by sea, shipping time will depend on destination port.Q: 4. Do you offer after-sale service?A: Yes, all our products are 12 months Warranty.
