Fanuc/Siemens/GSK System CNC Milling Machine CNC Horizontal Machining Center Machining Center Vmc960

Fanuc/Siemens/GSK System CNC Milling Machine CNC Horizontal Machining Center Machining Center Vmc960

US$33,600.00-42,000.00 1 Set (MOQ)

Basic Info.

Model NO.
VMC960
Type
Tool Milling Machine
Object
Sheet
Structure
Dedicated
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, SGS
Condition
New
Spindle Type
Direct Driven
Spindle Speed
12000rpm
Movement Method
Linear Control
Numerical Control
CNC/Mnc
Control Method
Closed-Loop Control
Performance Classification
High-End CNC Machine Tools
Transport Package
Wood Box
Specification
2380x2650x2440mm
Trademark
LiSN
Origin
China
HS Code
8457101000
Production Capacity
10000pieces/Year

Product Description


Product Description

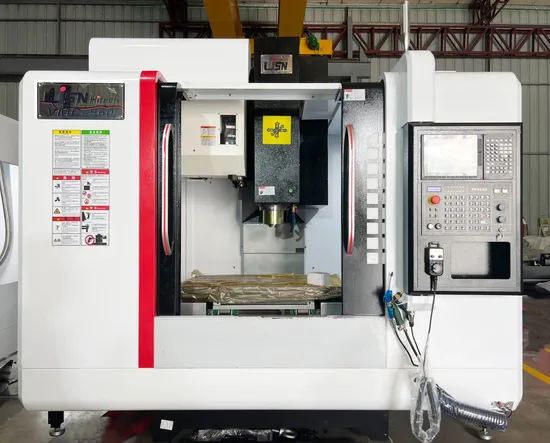

The 3 axis VMC-960 is a high performance CNC vertical machining center developed and manufactured by our company. The machine has the characteristics of high rigidity, high speed and high precision and has more advantages on operation and capabilities compared with similar products. All castings of the machine have been secondary tempered to provide excellent rigidity and stability for the whole machine. This machine applied with high rigid C design on structure, it also has been done with reinforcement on machine ribs.All the contact faces have been scraped manually, which guarantees the durability of accuracy. X/Y axes apply with two types of rolling guide way: ball bearing and roller guide way, which is optional that customer can choose base on customer's needs. Z axis applies roller guide way, which enables the machine to be with high rigidity, low noise, and small friction. The machine equips with an air tank, and the water can be drained out manually. Spindle is connected directly, and the highest speed can reach 10000RPM, which make this machie as a good choice for machining some complex parts with high efficiency.

Main Features
Mitsubishi M80 or Fanuc 0i control system High speed and precision spindle Excellent chip flushing system Excellent structure design High rigidity of the whole machine Excellent worktable size: 600mm*1000mm Excellent load capability of worktable: 600kg Detailed Photos
Product Parameters

Item

Specifications
MODELS→ VMC960

Travel Range
X/Y/Z Axis Travel mm 900/600/600

Worktable
Worktable (WidthxLength) mm 1000x600

Max Load Bearing Of Worktable
kg 600
T-Slot(number of SlotxSlot WidthxPitch) mm 5x18x100

Spindle
Spindle Hole Taper type BT40
Spindle Speed Range r/min 8000
Spindle Drive Mode type /Belt typ/Direct Connection

Feedrate
X/Y/Z Rapid Feed Speed m/min 36/36/36
Max Cutting Feed Speed mm/min 1-8000

Motor
Spindle Motor Power kw 5.5-7.5

Accuracy
X/Y/Z Position Accuracy mm 0.005
X/Y/Z Re-Position Accuracy mm 0.003

Machine Dimension

Machine Dimension
mm 2380 X2650X2440

Machine Weight
kg 4500

Company Profile
Lizhun Machinery Co., Ltd. is a company focused on innovation, development and production of CNC machining centers and CNC lathes. Adhering to the spirit of innovation and excellence, the company has provided many famous enterprises at home and abroad with extremely superior machines in performance, precision and quality. In the future, Lizhun will continue to maintain the spirit of innovation and excellence to provide strong and lasting support for the processing industry, and provide excellent processing machines for 5G, aviation, automobile and other industries.
Lizhun Machinery Co., Ltd. is located in Dongguan, Guangdong province. The product exhibition hall is located in Songshan Lake, Dongguan City, with beautiful scenery and elegant working environment. The factory is located in Dalingshan, with complete facilities and experienced staff. The staff has many years of experience in innovation, development, assembly and production, which ensures that each machine has extremely outstanding quality and performance when it leaves the factory.
The factory covers a large area and has multiple production lines to ensure production capacity and supply capacity. Excellent capacity and supply capacity can ensure that customers can receive the machine within the agreed time which can avoid a series of problems caused by insufficient capacity.

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
