Factory Hot Sales Grassland Fixed Knot Field Fence Mesh Machine for Farms

Product Description

Product Description

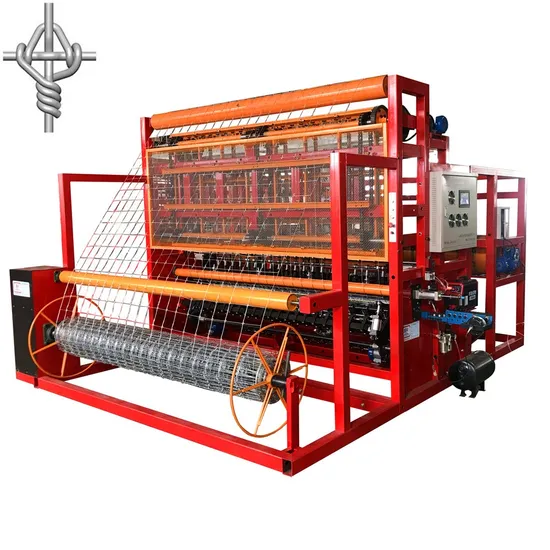

Fixed knot fence machine
The new type fixed knot fence machine is developed by our technical team and New Zealand company, Mechanical production of wire mesh products have great advantages :
1.★ Grassland net fence is made of high-strength galvanized steel wire, with high strength and large pulling force. It can withstand the violent impact of cattle, horses, sheep and other livestock, and is safe and reliable.
2. ★★Steel wire, galvanized around the surface, other parts are taken anti rust and anti-corrosion measures, can adapt to harsh working environment, life up to 20 years.
3. ★★★The weft of woven net adopts wave rolling technology, which enhances the elasticity and buffering function, and can adapt to the deformation of thermal expansion and cold contraction, so that the net fence always keeps in a tight state.
4. ★★★★The utility model has the advantages of simple structure, convenient maintenance, short construction period, small volume, light weight, easy transportation and installation, ventilation and light transmission, and does not affect the terrain.

Product features and uses
1.The wire mesh structure is novel, firm and precise, the screen surface is smooth, the mesh is even, the integrity is strong, the toughness is big, does not close, antiskid, compression resistance and so on.
2. It is widely used in: zoo fence, construction site fence, captive poultry, slope greening, landscaping net, wildlife park, grassland, pasture and other fenced grazing places,
especially in the pasture fence project, which can play a very important role in realizing rotational grazing and protecting grassland, and can also be used for precious flowers, forest, grassland, grassland, etc Isolation and protection of planting area.
Machine Parameters

Model	KZF-1560	KZF-1800	KZF-2400
Line wire spacing	120 mm (Multiple adjust)
Cross wire spacing	70-300 mm(Arbitrarily adjust)
Edge wire diameter	2.0-3.5 mm
Line wire diameter	1.6-3.2 mm
Knot wire diameter	1.6-2.5 mm
Production speed	32 Time /min
Line wire testing	Automatic stop lack of wire
Cross wire testing	Automatic stop lack of wire
Knot wire testing	Automatic stop lack of wire
Control system	PLC+touch screen
Wire material	Iron wire, Steel wire, Galvanized wire, etc
Fence height	Max 1560 mm	Max 1800 mm	Max 2400 mm
Line wire number	Max 14	Max 16	Max 21
Roll mesh length	30-100 meter	30-100 meter	30-100 meter
Dimensions	5000*2000*2600 mm	5000*2300*2600 mm	5000*2800*2600 mm
Weight	2800 kg	3200 kg	4500 kg

Detailed Photos
Roll mesh collection system
Roll mesh collection system will automatically adjust the tightness according to the roll mesh diameter,It's more convenient to take away the roll mesh.
Knot wire tightness testing system
Knot wire is tight ,machine will stop.This will make the knot wire equal in length. Make the knot more orderly.
Knot wire testing system
Every knot wire has a detection system,In case of knot wire loss, the machine will stop automatically. The detection distance of
each photoelectric sensor can be adjusted.
Line wire tightness testing system
Every wire will be tested for tightness. If the wire is tight, the machine will stop automatically.We can clear the fault easily
Wire prevent backset system
It can ensure the stable operation of the machine, and the mesh size is accurate and beautiful
Wire straightening system
Both the cross wire and line wires are straight.This can make the wire knot position accurate and standard.
Packaging & Shipping
Mechanical loading container
The normal package is Plastic packing wire rope of main machine is fixed in container.
All accessories are packed in wooden cases.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Installation Machinery
After the machinery arrives at the customer's factory, we will arrange engineers to provide installation service if necessary.
Company Profile
Factory History.
Hebei Kaiye Machinery Equipment Co., Ltd. was established in 2002. We are mainly engaged in the R & D, design, production and sales of CNC steel wire processing equipment, providing overall solutions for CNC steel wire processing. Products are widely used in railway, highway, bridge, tunnel, real estate, animal husbandry and other large-scale infrastructure construction, steel processing and distribution center and other fields.
Factory Scale.
Our factory covers an area of 12000 square meters, with raw material workshop, machining center workshop, mechanical assembly workshop, mechanical testing workshop.Our main products: wire mesh welding machine, EPS 3D panel machine, reinforcement mesh welding machine, Gabion mesh machine, hexagonal wire mesh machine,wire drawing machine, expanded metal machine,chain link fence machine, CNC stirrup rebar bending machine .
Factory R&D Team.
The factory has a strong and experienced R&D team. The average working life of team engineers has exceeded 8 years. Our technology is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers. FAQ
Q: Are you a trading company or manufacturer?
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing department. Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, certificate of origin etc, your customs clearance will be no problem.
If you are interested in screen machinery, Please contact me now. We will give you the best solution.
