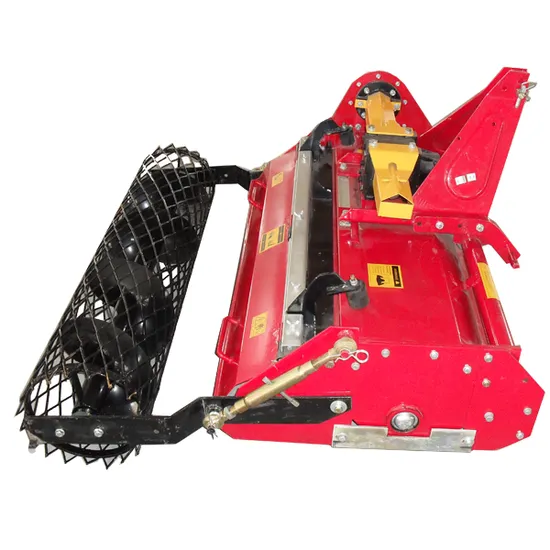

Rotary Cultivator Sb105/125/145/165 (Stone Burier SB Series) with CE
| US$500.00-1,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SB105/125/145/165
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Farming Policy
Mountain Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Fixed Operation
Traction Type
Traction
Drive Type
Chain Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Red
Warranty
1 Year
Transport Package
Iron Pallet or Wooden Package
Specification
CE, ISO9001
Trademark
NEWBANG
Origin
China
HS Code
84328090
Production Capacity
3000PCS/Year
Product Description
1. Suitable For Working In Orchards And For Gardening2. Model: SB Series
3. Sturdy Cast-iron Gearbox, Side Skids, Side Chain Drive, Automatic Tensioner, Cage Roller, Cat. I and II Universal Three-point Hitch, EC Safety Guards. The Shift (120 mm) Of The Three-point Hitch Is Mechanical And Manual And Does Not Require The Use Of Levers
4. Change Color Upon Request
5. With CE Certification
6. Suitable For The 4 Wheel Tractors
7. Change Color Upon Request
8. Rotary Cultivator Produces Have IGN, LTL, TL Series And So On
9. High Welding Processes And Surface Quality
10. Low Shock And Noise
| Model | SB105 | SB125 | SB145 | SB165 |
| Dimensions(L*W*H) | 1160x1330x920mm | 1360x1330x920mm | 1560x1330x920mm | 1760x1330x920mm |
| Structure weight | 330kg | 355kg | 380kg | 405kg |
| Working width | 950mm | 1150mm | 1350mm | 1550mm |
| Working depth | 120mm | 120mm | 120mm | 120mm |
| Working efficiency | 1500-2000 mm/h | 1800-2400 mm/h | 2100-2800 mm/h | 2400-3200 mm/h |
| PTO turning speed | 540r/min | 540r/min | 540r/min | 540r/min |
| PTO spline | 6x8x700mm | 6x8x700mm | 6x8x700mm | 6x8x700mm |
| Power required | 20-28hp | 25-30hp | 28-40hp | 35-45hp |
