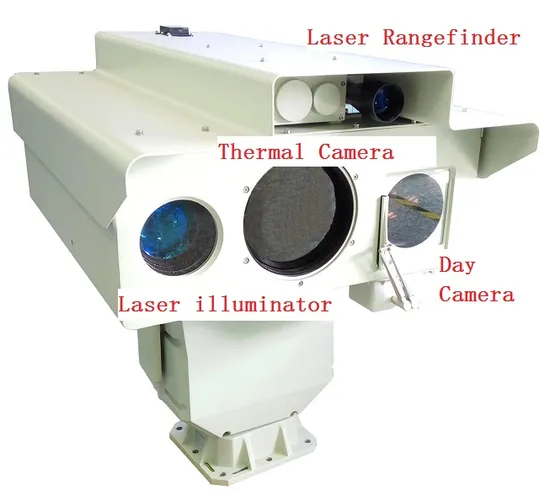

Military Multi Sensor Surveillance IP Thermal Imaging Camera with HD Laser Night Vision Camera and Laser Rangefinder

Product Description

Product features
Three spectral imaging design, with advantage of visible light imaging clearly, thermal imaging camera detecting far and laser night vision range large
Thermal camera :
25-100mm ,30-150mm,36-180mm,20-200mm (Optional) Human detect up to 5.6km,Vehicle detect up to 16km
Laser night vision camera:
250mm,320mm,500mm,750mm,1000mm(Optional).Night vision up to 5km ;Day vision more than 10km
Laser rangefinder: 3km to 30km
Technical Indicators

Model Number			SHR-WHLV4020HTIR205R -LRF10		SHR-WHLV3020HTIR185R -LRF10		SHR-WHLV1520HTIR155R -LRF10
Monitoring distance(m)	Day		8~10km		6~8km		3~6km
	Laser		4~5km		3~4km		2~2.5km
	Thermal camera	Detection	Human	Vehicle	Human	Vehicle	Human	Vehicle
			5600m	16000m	5040m	14400m	4200m	12000m
		Recognition	Human	Vehicle	Human	Vehicle	Human	Vehicle
			1400m	4000m	1260m	3600m	1050m	3000m
		Identification	Human	Vehicle	Human	Vehicle	Human	Vehicle
			700m	2000m	630m	1800m	520m	1500m
Thermal camera	Focal length		40~200mm		36~180mm		30~150mm
	Lens control		Electric zoom, electric focus, auto focus
	Detector type		Uncooled microbolometer focal plane array (VOx)
	Effective pixel		640×512&384×288
	Spectrum range		8~14μm
	NETD		≤50mK@F1.0,300K
	Frame frequency		25Hz
	Nonuniformity correction		Auto/ manual/ background correction
	Image process		DDE, pseudo color
Visible light camera	Focal length		16.7~1000mm		12.5~750mm		15.6~500mm
	FOV		0.45°~25°		0.5°~28.7°		0.9°~27.5°
	Auto iris		DC drive
	Fog penetrating		Supporting
	Auto focus		Supporting
	Wiper		Supporting
	Sensor		1/1.8''Progressive Scan CMOS
	Code format		H.264/MJPEG/MPEG4
	Video resolution		1080p, supporting three stream
	Network protocol		TCP/IP/RTP/RTSP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPNP
Laser illuminator	Illuminating angle		0.3°~30° continuous change
	Preset		Precise potentiometer voltage feedback
	Zoom mode		3CAM cam-gearing mode, high coaxiality
	Optical axis adjustment		External MMA fine adjustment mechanism
	Wave length		808nm
	Laser power switch		Auto/Manual control
Laser range finder	Max range		10km (In the mode of mid-latitudes atmosphere,T=20ºC, relative humidity 70%,1 standard atmospheric pressure, horizontal visibility>23.5km)
	Min range		≤50m
	Range Capacity(3×3)		>=6000m
	Wavelength		1570nm
	Beam Divergence		0.6~0.8mrad
	Precision		±1m
	Repetition frequency		1Hz
GPS	Antenna		Built in
	sensibility		-165 dBm
	Precision		5 m
	Location speed		Under open sky conditions;Hot start 1 s;Warm start 35 s;Cold start 38 s; recapture <1 s
	Height		< 18,000 m
	Speed		< 515 m/s
	Acceleration		< 4 g
Pantilt	Load		50kg (top mounted)
	Pan angle		360°, continuous rotation
	Tilt angle		-45°~+45°
	Speed		Pan:0.01°~ 12°/s Tilt:0.01°~8°/s
	Preset		255
	Preset precision		±0.1°
	Auto cruise		2 path, 64presets each path
	Auto line scan		1 path
	Communication protocol		Pelco-D,Pelco-P optional
	Bit rate		2400/4800/9600/19200 bps optional
	Anti-lightning		Power supply 4000V, video signal 2000V
