Hzs75 Hopper Batching Plant Concrete Price

Hzs75 Hopper Batching Plant Concrete Price

US$38,000.00-60,000.00 1 Set (MOQ)

Basic Info.

Model NO.
HZS75
Shotcrete Type
Semi-Dry
Machining Process
Automatic Concrete Production Line
Structure
Spiral Type
Productivity
75m²/h
Certification
ISO9001: 2000
Condition
New
Color
on Request
PLC
Omron or Siemens
Concrete Mixer Volume
1500L
Cement Silo
50/100t Bolted Type
Water&Cement
Separate Accurate Scale
Scale Accuracy
99% of Concrete Mixing Plant
Transport Package
Standard Packing for International Transport
Specification
HZS75 hopper batching plant concrete price
Trademark
FOCUS HZS75 hopper batching plant concrete price
Origin
Zhengzhou, Henan
HS Code
8474310000
Production Capacity
50 Sets Per Month

Product Description

HZS75 hopper batching plant concrete price
parameters
HZS75 hopper batching plant concrete price
model HZS25 HZS35 HZS50 HZS75
Theoretical output(m³/h) 25 35 50 75
Mixer model JS500 JS750 JS1000 JS1500
Output per batch(m³) 0.5 0.75 1 1.5
Aggregate batcher PLD800 PLD1200 PLD1600 PLD2400
Total power(KW) 27 35 80 110
Aggregate weighing accuracy(kg %) (0-1500)±2% (0-2250)±2% (0-2500)±2% (0-4000)±2%
cement weighing accuracy(kg %) (0-300)
±1%
(0-400)±1% (0-500)±1% (0-800)±1%
water weighing accuracy(kg %) (0-200)
±1%
(0-300)±1% (0-300)±1% (0-500)±1%
fly ash weighing accuracy(kg %) (0-300)
±1%
(0-300)±1% (0-300)±1% (0-500)±1%
additive weighing accuracy(kg %) (0-40)
±1%
(0-40)±1% (0-40)±1% (0-50)±1%
Discharge height(m) 3.8-4.1
Max. aggregate dia.(mm) 60 60 80 80
Cement silo and screw conveyor On request
Total weight (ton) 20 25 35 45
Overall dimension(LxWxH)(m) 11.5x5.8x19.4 12x6x19.4 20.5x7.5x19.4 25.9x9.2x19.4

Product Overviews
Why would our clients choose FOCUS concrete batching/mixing plant? On the basis of combining advantages of various foreign concrete mixing/batching plant and advanced technology, FOCUS HZS concrete mixing/batching plant adopts modular structure design, which maintains convenient installation& removal and safe, comfortable operation, with good mixing effect and high efficiency. Besides, it adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintaining.

Successful cases

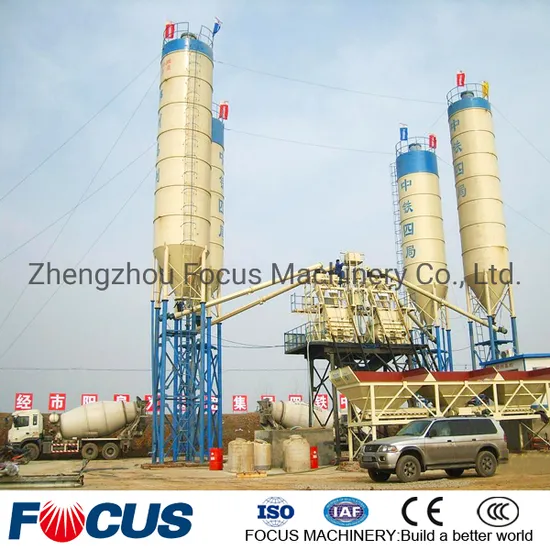

Our HZS75 hopper batching plant concrete price have been purchased, installed and operated all over the world:

Packaging&Shipping
Our HZS75 hopper batching plant concrete price have been delivered /distributed to the world with high reputation, it'll be such a great honor if you can join us
