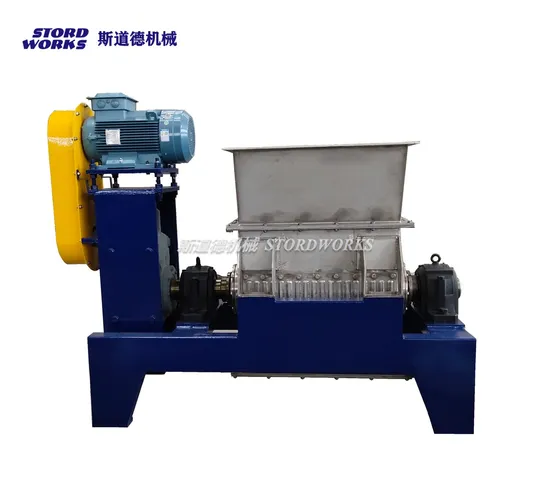

Stordworks High Performance Bone Crusher for Grain Soybean Corn Grinding

Product Description

The crusher is mainly used for crushing, breaking and decomposing bulk solid materials, and a spindle can be divoded into single spindle, twin-spindle, and four-spindle.
The crusher is provided with many kinds of blades, which are constructed of high quality steel and have good sharpness, srtength, hardness and wear resistance. Different blade structures can be designed according to different materials of blades include 9CrSi, 6CrW2Si, Cr12MoV, SKD-11, W6Mo5Cr4V2, H13K, HMB, D2, M2, DC53, SK2, SK4, SK5, 3cr13, 440B, 42CrMo and other high quality material. It is widely used in dead animals, animal protein, waste rubbish, waste vegetable, sludge, wood, mineral and other industries.
Advantages
·Smaller, consistently sized particles help ensure easier and more efficient heating/cooking downstream in your processes
·Rugged and reliable to make sure your breaking operations continue with a minimum of interruption
·Stands up well to any trapped metal or foreign objects that might be in the input material
·Easy replacement of the knife shaft unit, with minimal disturbance to your processing operations
·Easy maintenance plus quick and easy parts replacement help you maximize uptime and productivity
Product Parameters

Model	PS-5	PS-8	PS-10	PS-12	PS-15	PS-20
Box dimension(mm)	300×600	400×800	500×1000	600×1200	820×1200	1000×1300
Diameter of blade(mm)	φ180	φ220	φ280	φ350	φ400	φ550
Screw speed(rpm)	10-40	10-40	10-40	10-40	10-40	10-40
Motor power(kw)	11	22	37	45	75	90
Capacity(t/h)	1-5	5-8	8-10	10-12	12-15	15-20

1) low speed axis can handle metals in raw materials.2) equipped with electronic speed monitoring, the motor can be stopped immediately when large matter enter the crusher.3) the spindle is equipped with heavy roller bearings, which can resist large radial and axial impact.4) standard parts are used for driving from motor to shaft.5) localized structures can replace parts in a short time.6)the material inlet and outlet are equipped with standard removable butt flanges.
1.Carefully check the quantity and quality of equipment before packing.
2.Good packed by plastic wrap.
3.Iron Frame, Suitable for land transport and sea freight.
4.Fittings and spare parts are packed in wooden pallet.
5.Add labels and shipping mark. Fields of application
·First stage after material bins
·Ensures legislation compliance
·In any kind of rendering processes
Certifications
Our company has successively obtained the national standard pressure vessel manufacturing license, the pressure vessel design certificate, the ISO9001 certificate, the ISO14001 certificate, and obtained the ASME,CE,DNV, TR-620 certificates successively by cooperating with many international professional testing institutions such as BV, TUV, DNV, SGS. Our Partners
