High Accuracy Dimension Testing Machine/Measuring Machine/ Test Machine / Test Chamber / Testing Equipment for Dimension Control

Product Description

Main Parameters

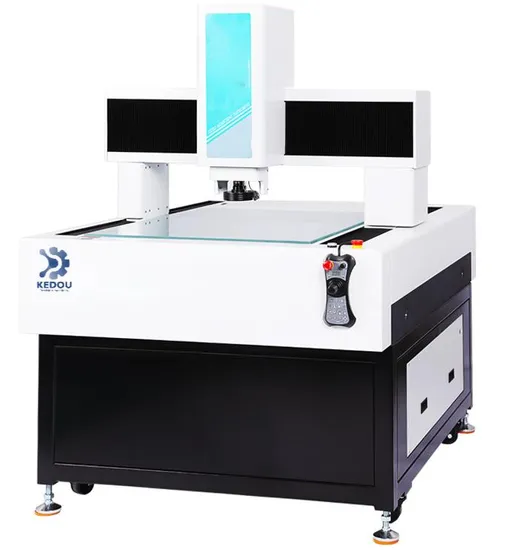

Model	KDJX-VME-6050H
measuring range(Axis X*Y*Z)	500mm*600MM*200MM
Resolution of grating	0.0005mm(0.5um)
Axis X,Y marked with value errors	E=(2.5+L/150 ) μm(L means the length,unit:mm)
Axis Z marked with value errors	E=(5+L/100)μm(L means the length,unit:mm)
Glass table size	750mm*618mm*12mm
Glass table load	≤50kg
Image magnification	30X~185X
Shape size	1400mm×1100mm×1700 mm
Data output	Measurement dataWord(doc),Excel(xls), Object to enlarge camera graphics(bmp,jpg),AutoCAD(dxf)

Working principle
After the surface light or contour light is illuminated, the warp focal length objective lens takes the image through the camera lens and transmits it to the computer screen through the S terminal. Then, the video crosshair generated on the display by the crosshair generator is used as the benchmark to carry out aiming measurement of the measured object, and the optical ruler is driven by the workbench to move in the X and Y directions for data processing by the multi-functional data processor. The measurement is completed by software calculation.
Instrument characteristics1. Non-contact optical measurement is adopted, without damaging the measured product;
2. New CNC software, software program control batch test objects, can output data reports, software can define the tolerance, automatically determine OK/NG;
3. Equipped with special automatic measuring instrument measuring software, can automatically repeat measurement 24 hours without interruption, Multi-product simultaneous detection greatly improve the efficiency of measurement.
4. Adopt granite body, stable machine, simple and generous appearance;
Applications
The company's products include die cutting machine, laminating machine, slitting machine and product inspection machine, which are widely applied to such fields as computer, semiconductor,New energy ,mobile phone, television, LED, backlight, touch screen, glue, printing, solar energy, automobile, medical treatment, etc.
