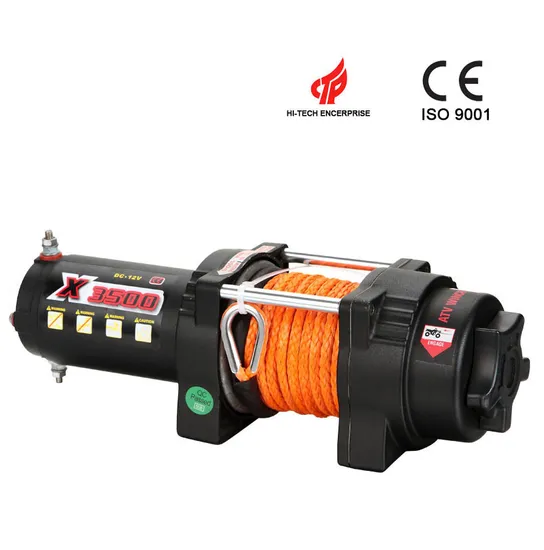

12V ATV Winch with 3500lbs Pulling
| US$65.00-78.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
X3500S
Pull Direction
Forward
Electric Winch Model
ATV
Working Voltage of Electric Winch
Low Voltage
Brand
Zhme
Applicable Environment
Mountain Road
Certification
GS, CE, RoHS
Rated Line Pull
3500lbs
Transport Package
Netural Packages
Specification
CE
Trademark
ZHME(can be OEM)
Origin
China
HS Code
84253190
Production Capacity
100000PCS Per Year
Packaging & Delivery
Package Size
41.00cm * 22.00cm * 16.00cm
Package Gross Weight
10.000kg
Product Description
12V ATV Winch with 3500lbs PullingRated line pull: 3500lbs(1587kgs) single line
Motor: Permanent Magnetic motor (1.5HP)/1.0kw DC12V
Gear Train: 3 stage planetary
Gear ratio: 198: 1
Clutch: Sliding Ring gear
Braking action: Automatic in the drum
Fairlead: Aluminum hawse fairlead for synthetic rope
Synthetic rope: Ø 5.5mm × 10m
Drum size: 50mmx76.5mm
Dimensions: 334mmX114mmX120mm
Mounting bolt
Pattern: 124mmX76mm
N. W: 17.6LBS(8.0KGS)
Packing: 440mmX250mmX220mm(per carton)
1000PCS per 20' container
| Line speed and motor current (first layer) | ||||||
| Line pull | Lbs | 0 | 1000 | 2000 | 3000 | 3500 |
| Kgs | 0 | 454 | 907 | 1360 | 1589 | |
| Line speed | FPM | 16 | 10.5 | 9.2 | 7.2 | 5.9 |
| MPM | 4.9 | 3.2 | 2.8 | 2.2 | 1.8 | |
| Motor current | Amps | 15 | 70 | 105 | 135 | 150 |
| Line pull and cable capacity | |||||
| Layer of cable | 1 | 2 | 3 | 4 | |
| Rated line pull per layer | Lbs | 3500 | 2870 | 2430 | 2100 |
| Kgs | 1598 | 1300 | 1100 | 950 | |
| Cable capacity per layer | Ft | 6.9 | 15.1 | 24.9 | 36.4 |
| M | 2.1 | 4.6 | 7.6 | 10 | |
