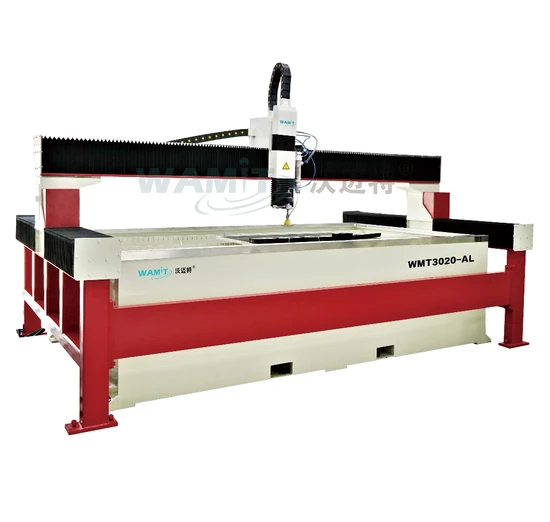

3*2m Abrasive Steel Pipe Cut AC 5 Axis CNC Water Jet Equipment Hydro Cutting Machine

Product Description

Product Description 3*2m Abrasive Steel Pipe Cut AC 5 Axis CNC Water Jet Equipment Hydro Cutting Machine our direct drive pump can save your 60%-70% electricity cost! ADVANTAGES:
1. we promise 2 years( 2000 hours) warranty always. and have got CE certificate
2. we use flow type ECL cutting head, the cutting efficiency is at least 10% higher.
3. the abrasive sand hopper beside the cutting head is also FLOW design.
4. we have new technology that can make the machine moving speed is to 30m/min. normal speed is 6m/min as you see. if this technology used in pure water cutting, the cutting cost will reduce 50%. if using other materials cutting like glass , marble, steel, the cutting cost will also 20-30% reduced. but of course , the machine with this function price will be a little higher.
5. we use soft cover of the linear guider, can prevent dust away from the linear guider, so keep the linear guider keep precision longer.
6. we assemble an auto oil feeding to linear guider, so customer needn't maintenance the linear guider always.
7. seperated body.
8. we will send a remote control pendent.
9. we have the world most convenient abrasive sand removing system. it can be used for any brand water jet cutting machine, maybe you can promote this system in your country and other countries. please check the attachment.
11. we supply 420mpa pump with 37KW motor, but the price of the whole machine is very competitive now
12. we use variable pump, so can reduce electricity cost for customers.
13. we can do 220V and 415v also.
14. like height tracking system, positioning system , we can also provide.
15. all our components are SCHNEIDER brand
16. the motor and PLC are SIEMENS brand.
17. we can provide AB 5 axis with 10 degree and AC 3D 5 axis with 60 degree.
18. use 10mm steel for water tank supporter and use 8mm steel for beam, keep the machine working more stable.
19. use JAPAN YASKAWA servo motor.
20. imported TAIWAN HIWIN ball screw and linear guider
21. imported America intensifier and TAIWAN accumulator and high pressure assembly and low pressure assembly. if you have special requests, we can also do.
22. we can provide 80Kpsi and 90KPSI intensifier pump and 60KPSI direct drive pump.
23. can make Touch screen
24. automatic calibration gantry perpendicularity


Can nearly cut all material:

Alloy Steel
Aluminum
Armor Plate
Brass
Boron
Bronze
Cast Iron
Cobalt
Copper
Exotic Alloys
Hastalloy
Hardened Steel
Hot Rolled Steel
Inconel
Kevlar
Magnesium
Mild Steel
Nickel Alloys Stainless Steel
Steel Alloy
Steel Hardened
Steel Hard Rolled
Steel Mild
Steel Tool
Tantalum
Tin
Titanium
Tungsten
Wrought Iron
Zinc
Acrylics
Ceramics
Composites
Foam
Fiberglass
Kevlar
Mylar Laminates
Nylon
Plastics
Plexiglass
Porcelain
PVC
Rubber
Thermoplastics
Quartz glass
Urethane
Vinyl
Armor Plate
Bullet Proof Glass
Glass,Mirror Glass
Ceramic Tile
Granite
Limestone
Marble
Porcelain
Terrazzo
Hardwood
CUTTING TABLE FEATURES: 1. Gantry type balanced design work table, solid and stable, higher strength
2. Work table of CNC motion mechanism and workpiece supporting adopts a split structure, which eliminates the influence of water gushing on cutting precision during cutting
3. X-axis,Y- axis use high quality LINDEN SWEDEN rack and pinion, TBI rail, which ensure the accuracy of bearing parts, stable conveying, hard-wearing quality. During cutting, it causes splashing sand and water. Fully enclosed lifting structure design in Z-axis prevents corrosion of lead screws and guides.
4. Lntegrated automatic lubrication system make the maintenance more automatic and easier.
5. All electric components are Schneider brand
6. Equipped with YASKAWA AC servo drive power and motor ( Japan brand), high accuracy, long service life. 60000psi (420mpa) intensifier pump 1.Type of pressurization is hydraulic. (The water is pressurized by using the fluid pressure intensification principle).
2.Max. oil discharge is 90 L/min
3.Max. water discharge is 3.8L/min
4.Max. diameter of orifice is 0.33mm
5.Max. operating pressure is 420MPa(60000 psi)
6.Continuous operating pressure is 350-380MPa
7.Power requirement : 37KW, 3 phrase, 380V/50HZ, can do 220V/415V.
8.Type of shift is electronic
9.Maintenance free accumulator is originally imported from TAIWAN.
10.Intensifier high pressure parts are imported from USA
11.With SIEMENS motor and SIEMENS PLC and the motor is variable pump so that can reduce using cost.
12.all electric components are Schneider brand.
abrasive sand feeding system Abrasive sand feeding system No need electronic control, simple operation, reliable, maintenance-free
Can supply the cutting sand quantity
Need less than 0.2Mpa compressed gas pressure. 220KG Sand can be used for 8-10 hours. CNC controller CNC control, apply 21 inch LCD
Adopt specialized NCStudio water jet cutting software, have autosave function for next operation.
Apply SIEMENS PLC instead of relay, buttons are Schneider can provide ITALY Imported ECS software which support more than 15 languages OIL CHILLER AC 5 axis water supply system abrasive sand removal system flip table height tracking water softener Cutting Speed

Material	Specification	Speed(mm/min)
		60000psi Servo direct drive pump	60000psi Hydraulic intensifier pump
Carbon steel plate	10mm	330	270
	12mm	280	220
	14mm	240	180
	16mm	200	140
	20mm	170	110
	22mm	140	85
Aluminum plate	12mm	800	600
	30mm	200	160
Glass	5mm	2000	1600
	8mm	1800	1400
	10mm	1500	1100
	12mm	1200	900
	14mm	1000	700
Ceramic tile	12mm	2000	1500
	14mm	1400	900
Microcrystal stone	16mm	1200	900
Marble	25mm	1000	800
	30mm	800	600

Related Products Packing&Shipping soft packing in one 20'FCL container After Sales Service We have exported to more than 20 countries yet, and now have agent in America, Russia,South Africa,Ecuador,UK,Argentina,Chile,Mexico,Austrilia,Saudi Arabia and other GCC countries, Malaysia,Vietnam. we can arrange engineers go to customer's factory if no agents in their country. reback time: not more than 12 hours. Customer Photos Company Introduction We are professional supplier of water jet cutting machine and spare parts for all Chinese brand water jet cutting machine. Our factory is located in JINAN city, SHANDONG province, China. we have 420Mpa intensifier pump, 80KPSI and 90KPSI intensifier pump , 60KPSI direct drive pump and 420mpa with dual intensifier pump, we also can provide 3 axis , 5 axis with 10 degree and dynamic 5 axis with 60 degree cutting head water jet cutting machine, pure water cutting and abrasive sand cutting. our machines are with excellent quality efficient and accuracy, economical investment with low initial cost and low maintenance cost to our customers. All the machinery delivered by us come with first class after-sale service. all machines are with one- year warranty of main parts, whole-life after-service for the entire machine.We can supply water jet cutting machine according to your requests,from the cutting table size to the special design . Especially our new design of automatic abrasive sand removing system bring convenience for glass and marble factories. this system can fit for any brand water jet cutting machine. you needn't stop the machine while it is working.our new FLOW type cutting head can improve you 10% cutting efficiency, and our new technology can make the machine moving speed to 30-50m/min so that reduce you 15%-50% cutting cost according to the materials.Until now We have expanded our market to North America, Australia, Southeast Asia, Central Asia and the Middle East. And establish a good relationship with our customers in Russia, Argentina, America, Canada, UK, Chile, South Africa, Ecuador,Kuwait, Hungary , Saudi Arabia , Vietnam, Turkey,Mexico,Malaysia ,Australia and other countries and regions.we now have after-service department in America, Russia, South Africa, Ecuador,UK, Argentina, Chile.Mexico,Australia,Saudi Arabia,Malaysia.Vietnam.We takes "customer first, reliable quality, honest and faithful, good team work" as our consistent business principle. With the strict management and continuous improvement, we can supply the best way of cutting by water jet. please don't hesitate to contact us if you want to know more! FAQ 1. Are you manufacturer or trading company?
We are manufacturer of water jet cutting machine in JINAN city, Shandong, China.
2. What kind of material does your water jet cutting machine can cut?
There are plenty materials our water jet cutting machine can cut, such as stone, ceramic, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel, titanium, inconel and cast alloy.
3. What's your CNC water jet cutting machine's max. cutting thickness?
Generally speaking, if cut steel the max thickness of our water jet cutting machine can be up to 240mm, but we suggest cut no more than 150mm for smooth cutting. Now our Z axis distance is 170mm, we can customize for customers. Regular thickness please refer to: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm.
4. How we supply after-service?
Some countries we have after-service department, we will provide local service, if have no local service, we will arrange engineer for overseas installation and training. The installation and training time is generally 7-10 days. And we also can provide installation videos.
5. What's your delivery time?
Generally speaking is 30 days. if have stock, 7-15 days.
