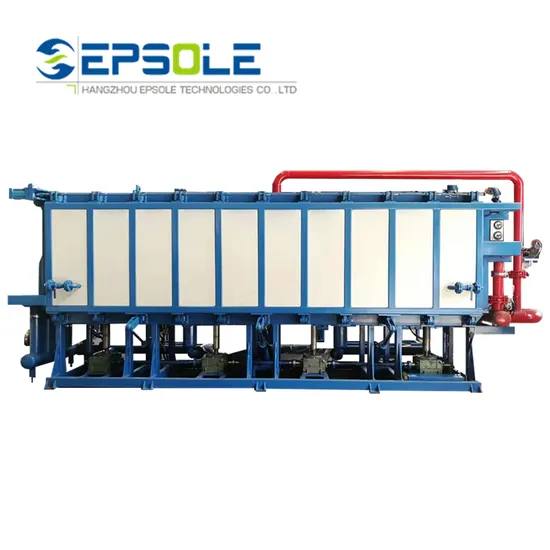

Factory Price Automatic EPS Expandable Polystyrene Foam Vacuum Forming Block Moulding Machine

Product Description

Product Description
Our high-quality EPS block molding machine is designed to meet the demands of the modern industrial market. With its advanced technology and reliable performance, this machine offers exceptional efficiency and precision in producing EPS blocks for various applications.
The EPS block molding machine features a fully automatic operation system, which ensures consistent quality and yields high production rates.
The machine is equipped with a PLC control system, which allows for easy and convenient operation, as well as precise control of the production process.
One of the key highlights of this machine is its high energy efficiency. The machine is designed to minimize energy consumption, reducing operating costs and minimizing environmental impact.
Additionally, the machine is designed with safety in mind, featuring a range of safety devices and systems to ensure safe and reliable operation.
The machine is highly customizable, with a range of options available to meet specific customer needs. From different block sizes and shapes to customized control systems, our EPS block molding machine can be tailored to meet specific production requirements.
Our EPS block molding machine is ideal for a range of applications, including packaging, construction, and insulation.
The machine produces high-quality EPS blocks that are lightweight, durable, and provide excellent thermal insulation properties.
In addition to its exceptional performance, our EPS block molding machine is also highly reliable and requires minimal maintenance. With its robust construction and advanced components, the machine is built to last and can provide years of trouble-free operation.
Overall, our EPS block molding machine is an ideal choice for businesses looking to improve their production efficiency and reduce operating costs.
With its advanced technology, energy efficiency, and customizable options, this machine is a reliable and high-performance solution for producing high-quality EPS blocks for a range of industrial applications.
Technical Data

Item		ESB200V	ESB200A	ESB400V	ESB400A	ESB600V	ESB600A
Mould Cavity size		2040×1240×1030(mm)	2040×1240×630(mm)	4100×1240×1030(mm)	4080×1240×630(mm)	6100×1240×1030(mm)	6100×1240×630(mm)
Block size		2000×1200×1000(mm)	2000×1200×600(mm)	4000×1200×1000(mm)	4000×1200×600(mm)	6000×1200×1000(mm)	6000×1200×600(mm)
Steam	Entry	DN100	DN100	DN150	DN125	DN150	DN150
	Consumption	30-50kg/cycle	20-30kg/cycle	60-90kg/cycle	45-55kg/cycle	130-150kg/cycle	60-70kg/cycle
	Pressure	0.8Mpa	0.8Mpa	0.8Mpa	0.8Mpa	0.8Mpa	0.8Mpa
compressed Air	Entry	DN40	DN40	DN40	DN40	DN200	DN40
	Consumption	1.5-2m3/cycle	1-1.5m3/cycle	2-2.5m3m3/cycle	1.5-2m3/cycle	120-170m3/cycle	120-170m3/cycle
	Pressure	0.6Mpa	0.6Mpa	0.6Mpa	0.6Mpa	0.6Mpa	0.6Mpa
Cooling Water	Entry	DN40		DN40		DN40
	Consumption	0.2-0.4m3/cycle		0.6-0.8m3/cycle		2.5-3m3/cycle
	Pressure	0.4-0.6Mpa		0.4-0.6Mpa		0.4-0.6Mpa
Drainage	Vacuum Drain	125mm		125mm		125mm
	Steam Vent	150mm	125mm	200mm	200mm	250mm	200mm
	Condensate	100mm	125mm	100mm	150mm	100mm	150mm
	Blower Outlet	125mm		150mm		150mm
Throughput	15kg/m3	5min/cycle	5-12min/cycle	7min/cycle	7-18min/cycle	8min/cycle	8-18min/cycle
connected load		20.5-24.5KW		24.5-35.5KW	13KW	24.5-35.5KW	13KW
Overall Dimension	(L×W×H)	5700×4000×2850(mm)	4000×2150×2120(mm)	11000×4500×3000(mm)	6040×2270×2250(mm)	12600×3960×2906(mm)	8100×2500×3100(mm)
Weight		6000kg	4200kg	12000kg	8500kg	15000kg	9500kg
Room Height Required		6000mm	6000mm	6000mm	6000mm	6000mm	6000mm

Product advantages
Triple safety protection device to ensure safe and reliable production process - All procedures are controlled by HMI & PLC, all parameters can be revised in HMI with easy operation
- Single door opening with two seal layer insure no steam leakage.
- State standard Q235B Profile steel are used for block mould frame.
- State standard LY12 aluminum is used for steam chamber, thickness 5mm
- Yuken brand hydraulic controls block ejection, open & close door, lock & unlock door.
- Special pipe system reduce steam consumption with fast cycle time.
Pressure gauges-(ISO Standard)
Buttery fly valves-(ISO Standard_
Product Application
