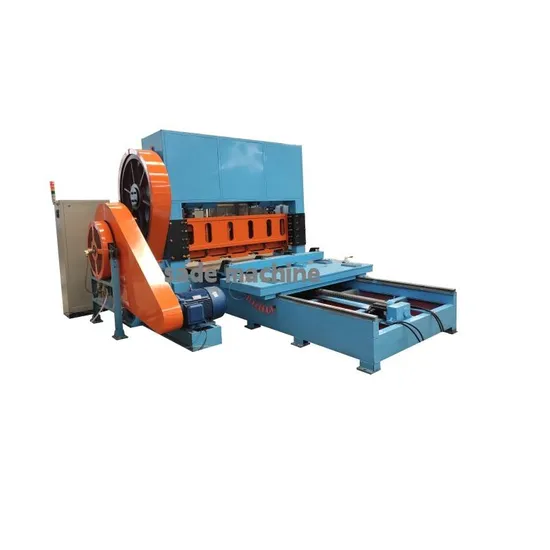

Automatic High Speed Expanded Perforated Metal Mesh Making Machine for Diamond Shape

Product Description

Gabion mesh machine	Hexagonal wire mesh machine	Chain link fence machine	Wire drawing machine
Cold rolled wire ribbed machine	Perforated metal machine	Field fence machine	Barbed razor machine

Automatic high speed expanded perforated metal mesh making machine for diamond shape
Product Description

Product Description


Expanded mesh machine can punches and cuts various steel plates or iron plates, and then stretches them into a diamond mesh mesh. This is called a diamond mesh. The other is that it punches a steel plate to form a circular hole or various shaped meshes.It suitable for Low carbon steel sheet, aluminum sheet, stainless steel sheet, aluminum magnesium alloy sheet, copper sheet, etc .
Technical Parameters

Technical Parameters

Model	Width (mm)	Material Thickness (mm)	Punching speed (Times/min)	Material feeding way	Feeding distance (mm)	Mesh Size LWD (mm)	Power (KW)	Weight (T)
JQ25-6.3T	600	0.1-1.0	350	By coil	0-10	25	4	0.95
JQ25-16T	1000	0.1-1.5	320	By coil	0-10	30	5.5	2
JQ25-25T	1250	0.2-1.5	280	By coil	0-10	30	5.5	3
JQ25-50T	1600	0.3-2.5	120	By coil or sheet	0-15	100	11	6
JQ25-63T	2000	0.5-4.0	80	By sheet	0-15	150	18.5	10
JQ25-100T	2000/2500	0.5-6.0	75	By sheet	0-20	200	22	12.5
JQ25-160T	2000/2500/3200	0.5-8.0	65	By sheet	0-20	200	30	14
JQ25-260T	2000/2500	0.5-10.0	55	By sheet	0-20	200	55	26/29

Advantages

Advantages
1. One machine can make different mesh shape, size.
2. Automatic lubricating system
3. Cutter Mold material: YG21 Alloy- durable,reusable after grinding.
4. Servo or stepper motor material feeding more precise.
5. PLC+Touch screen control system.All electronics equipped with world famous brand.
6. Pneumatic brake, More stable and safety.
Product Details

Product Details
Finished Product

Finished Product
This machine adopts mature technologies of the past as well as new technologie,such as full-automatic lubricating, NC stepping motor feeding, etc. It has good effect, control ability,stability and safety has been greatly increased. It has reasonable structure, elegant appearance. energy saving.
Material:low carbon steel sheet, aluminium sheet, stainless steel sheet, aluminium magnesium alloysheet, copper sheet, Nickel sheet.
Our Company

Our Company
Certifications

Certifications
Customer Visits

Customer Visits

FAQ
Q: Are you a trading company or manufacturer?
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 180 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, Certificate of origin, Certificate of quality etc, your customs clearance will be no problem.
If you are interested in our machines, please contact us now,We will provide you with professional and reasonable solutions.
