Automatic Tool Change 5X10 CNC Router for Woodworking for Furniture Cabinets Making

Automatic Tool Change 5X10 CNC Router for Woodworking for Furniture Cabinets Making

US$71,000.00-73,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
BCM-2030D 5AXIS
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V/220V/Customizable
Spindle Power
3-20kw (Customizable)
Application
Mold Industries Furniture Industry
Drive Motors
Japanese Yaskawa Servo Motor and Drivers
Operating System
Taiwan Syntec Control System
Command Language
G Code
Table Surface
T-Slot Table
Transport Package
According to Customer Requirements
Specification
9.8*2.2*2.5/4000KG
Trademark
BCAMCNC
Origin
Shandong China
HS Code
8465990000
Production Capacity
1000pieces/Year

Product Description

Product Description
ADVANTAGES
1.9KW Air cooled spindle(Customizable), fast tool change speed, suitable for efficient cutting, slotting, milling and other processing of panel furniture.
2.High-power servo motor and precision screw link design, high torque, high kinetic energy, stable operation and high efficiency.
3.Dual table 5-axis, dual workstation switching, can be moved at the same time, saving time, effort and labor.
4.Swivel head machines maneuver the tool around the fixed block of material to machine around and through the piece and get into tight spaces from different angles. One benefit of this method is that a more massive object can be machined since the block of material remains stationary throughout the process.
5.5 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries.
SPECIFICATION
Product Name 5 Axis CNC Wood Router
Working Area 1325//1530/2030/2040/2050/2060/
Spindle Power 9.0kw Hiteco spindle + Oakmond 5-axis head
X,Y,Z Traveling Positioning Accuracy ±0.02/2000mm
Table Surface Vacuum table+T-solt table
X,Y,Z Rail and Trasmission XY axis gear transmission, Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate 90m/min
Max. Working Speed 70m/min
Spindle Speed 6000-24000RPM
Drive Motors Japanese Yaskawa servo motor and drivers
Working Voltage g Environment AC380v/50HZ/3 phase
Command Language G Code
Operating System Taiwan Syntec control system
Interface USB
Software Compatibility Option:BCAMPro/VCarve/VCarve Pro/ArtCAM/UCANCAM,etc.
Running Environment Temperature:-20ºC~45ºC Relative Humidity: 5%~75%
Cutting thickness According materials

Machine Details
MACHINE DETAILS

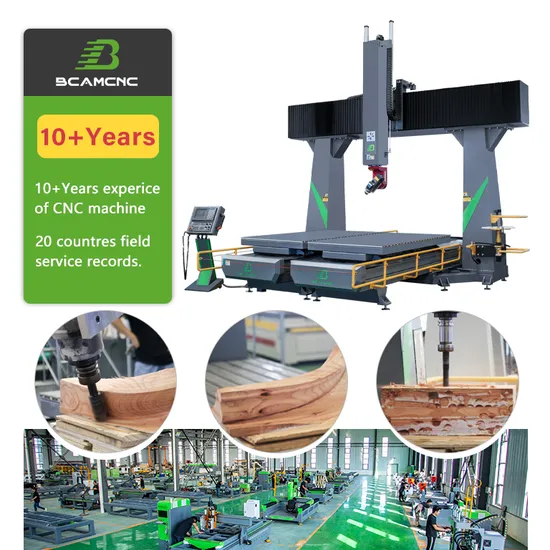

CNC Router 5-Axis Series
Welded frame heavy bed,
Standard steel gantry,
Welded iron columns.
9.0kw Hiteco spindle + Oakmond 5-axis head
Japan YASKAWA 1300W servo/
Z axis with brake, Xinbao reducer.
Delta 11kw VDF-MS frequency conversion with brake resistor.
Operation table
New generation 610MA,
New generation MPG handwheel,
Support multi-language switching.
Lubrication system
Automatic lubrication,
lubricating oil label:Great Wall No. 32 hydraulic oil (white oil).
Double movable table
T-slot double movable table,
Can move workpieces at the same time.
Tool setting and tool magazine
Automatic tool setting instrument
12-nosition disc tool changer
safety protection.

Samples Display
SAMPLES DISPLAY

Certifications
CERTIFICATIONS
Customer Reviews
CUSTOMER REVIEWS
Company Profile
ABOUT BCAMCNC
FAQ
FAQ
Q: How to choose a suitable machine?
A: You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q: Are you a factory or a trade company?
A: We are a factory with rich experience. Our factory is in Shandong, China. Or directly make an appointment with the customer for a video factory inspection. Send factory inspection video to customers to watch
Q:What about after-sales problems?
A: If your macine such problems, please contact us as soon as possible, and do not try to repair the machine by yourself or others. We will reply as soon as possible within 24 hours to solve it for you.
Q:Do you have a setup and equipment commissioning service?
A: Yes,we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also could let our technologists go to your country to install and debug the machine.
If you have other questions, Please send inquiry. We will reply to you as soon as possible.
