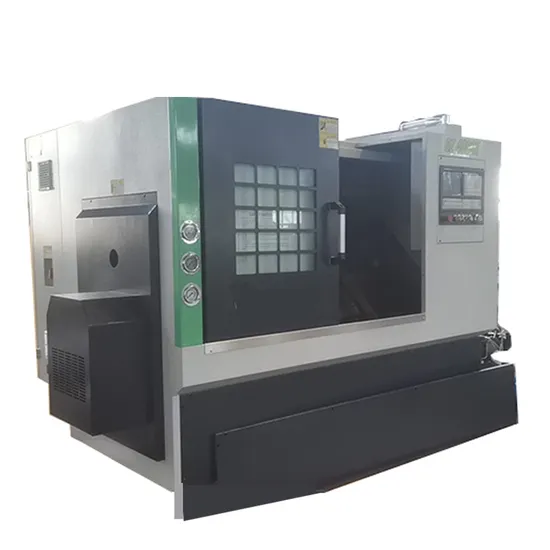

China Horizontal Slant Bed CNC Turning Machine CNC Lathe for Metal Tck400
Basic Info.
Model NO.
TCK400
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.03~0.04(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Name
Slant Bed CNC Lathe Machine
Max. Swing Over Bed
400mm
Max. Swing Over Cross Slide
140mm
Max. Workpiece Length
400/300mm
Spindle Nose
A2-5
Spindle Bore Diameter
48/56mm
Spindle Speed
3500rpm
X Stroke
400mm
Z Stroke
500mm
Spindle Unit
140mm
Bar Capacity
40/45mm
Chuck Size
6′′/8′′
Spindle Motor
5.5/7.5kw
Turret Type
Gang Type or 4 Station
Inclined Angle
45degree
Transport Package
W/Cases
Specification
CE, ISO+001
Trademark
UNI-TECH
Origin
Shandong, China
HS Code
84581900
Production Capacity
100sets/Month
Packaging & Delivery
Package Size
240.00cm * 155.00cm * 188.00cm
Package Gross Weight
2700.000kg
Product Description
China Horizontal Slant Bed CNC turning machine CNC Lathe for metal TCK400 Product Descriptioncnc lathe machine Main features:
This machine is applicable to automobile, motorcycle, electronics, aerospace, military, oil and other industry. It could turn the conical surface, circular arc surface, end face of the rotary parts, could also turn various metric and
inch threads etc,with higher efficiency and higher precision in bulk.
1. 45 degrees slant bed CNC lathe
2. Higher accuracy Taiwan linear guide
3. Chip conveying capacity is large and convenient, customer could choose
4. Chip conveying in the front or in the back
5. X, Z direction servo motor through high torque low inertia flexible coupling directly connected with the screw, screw supporting the use of pre-stretching structure
6. Gang type tool post
7. high-speed high-precision high-rigidity shell-type spindle unit, servo spindle motor, can achieve higher spindle speeds.
8. Use advanced centralized lubrication system uses
9. machine with full protection design,waterproof debris reliable, easy maintenance.
| Max. swing over bed | mm | Φ400 | Φ400 | Φ500 |
| Max. swing over cross slide | mm | Φ130 | Φ140 | Φ220 |
| Max. processing length | mm | 200 | 300 | 410 |
| X/Z axis travel | mm | 400/200 | 380/350 | 500/500 |
| Spindle unit | mm | 140/150 | 140/170 | 200 |
| Spindle nose | A2-5 | A2-5 | A2-6 | |
| Spindle bore | mm | 48 | 56 | 66 |
| Spindle drawing pipe diameter | mm | 40 | 45 | 55 |
| Spindle speed | rpm | 3500(standard) 5000(optional) | 3500(standard) 5000(optional) | 3000 |
| Chuck size | inch | 6 | 6 | 10 |
| Spindle motor | kw | 3.7(standard) 5.5(optional) | 3.7(standard) 5.5(optional) | 7.5/11 |
| X/Z feed motor power | kw | 1.5 | 1.5 | |
| X/Z feed motor torque | N.m | 6/6 | 6/6 | 7.5/7.5 |
| X/Z repeatability | mm | ±0.003 | ±0.003 | ±0.003 |
| X/Z rapid feed speed | m/min | 18/15 | 18/15 | 24/24 |
| Cutting tool shape size | mm | 20*20 | 20*20 | 25*25 |
| Tool post type | gang type | |||
| Guide type | Taiwan linear guide way | |||
| Machine dimension (L*W*H) | mm | 2390×1530×1780 | 2300x1500x1750 | 2500X1620X1890 |
| N.W. | kgs | 2200 | 2000 | 2900 |
STANDARD ACCESSORIES:
1.GSK980TDC
2.servo motor 5.5 kw
3.4 station gang type tool post
OPTIONAL ACCESSORIES:
1.Siemens 808D NC system Fanuc Oi Mate-T
2.Turret: 4 station electric turret , 6 station electric turret
3. Chuck: 6″Non-through hole hydraulic chuck
8″Non-through hole hydraulic chuck (Taiwan)
8″through hole hydraulic chuck(Taiwan)
4.Chip conveyor
5.Steady Rest
6.Other optional item: Driving tool turret, automatic feeding device and manipulator. Detailed Photos
cnc lathe machine More photos
If you are interested in slant bed cnc lathe turning machine, pls contact us
TENGZHOU UNI-TECH CO.,LTD
Contact person: KITTY XU
