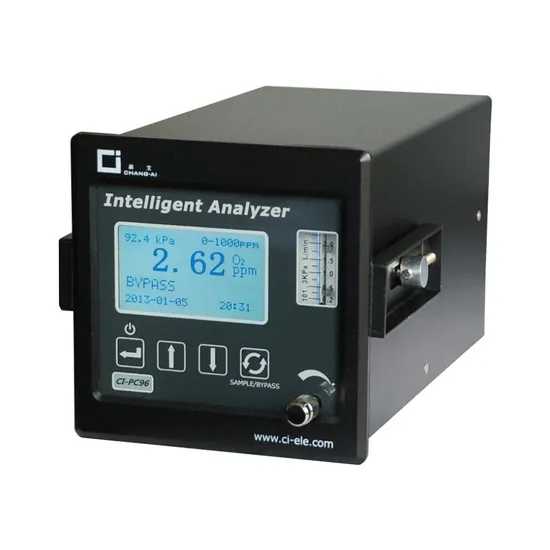

Easy to Replace Sensor Intelligent Trace Oxygen Analyzer Ci-PC96

Product Description

Intelligent Trace Oxygen Analyzer CI-PC96 Product Description
CI-PC96/CI-PC961 is a micro oxygen analyzer, which is an intelligent analyzer based on microprocessor. The sensor used in this system is a fuel cell oxygen sensor, which can measure 0-25% oxygen concentration, but in the environment of 0-1000ppm oxygen concentration, the measurement is the best.

Features
1. 240×128 LCD display oxygen concentration and other settings;
2. Isolated 4-20mA signal output, with 0-100mV, 0-1V and 0-10V as options;1.
3. Easy to replace sensor;
4. Standard RS232 two-way communication port;
5. Two way SPST alarms;
6.Over pressure protection function and over purity range protection function;
7. Automatic data storage in a certain interval time, and browsing data at any time

Product Parameters

	Oxygen analyzer Data
Model:	CI-PC96
Measure Range:	0-10/100/1000ppm, 1% O2
Principle:	Electrochemical
Measure Mode:	Online
Install:	Dial mounted
Application:	Non dangerous general applications
Sensitivity:	0.5% F.S.
Measure Accuracy:	≤±5% @ 0-10ppm ; ≤±3% @ 0-100ppm; ≤±2% @0-1000ppm
Stability:	≤±2.5% @ 0-10ppm; ≤±1.5% @ 0-100ppm; ≤±1% @ 0-1000ppm
Response Time:	T90<60s under 25ºC
Sample Gas Temperature:	0-45ºC
Sample Gas Flow:	1.2L/min
Sample Gas Pressure:	35-210KPa
Power Supply:	AC85~265, consumption lower than 20VA
Signal Output:	4-20mA DC isolated, with 0-100mV, 0-1V and 0-10V to switch
Alarms:	2 way SPST alarm
Alarm Contact Capacity:	0.2A under AC240V
Display Resolution:	0.01%@%; 1ppm@100-10000ppm; 0.1ppm@10-100ppm; 0.01ppm@0-10ppm
Communication:	RS232 standard (RS485 optional)
Analyzer Size:	144 (W)×144 (H)×190 (D) mm

Applications
This oxygen analyzer can be used for Air separation, PSA oxygen generator, Medical oxygen, Petro-chemical, and other oxygen purity detection in inert gas mixtures.

FAQ
How to order or get a simple of oxygen analyzer?
1. Measure range
2. Tested gas pressure
3. Gas composition and impurity
