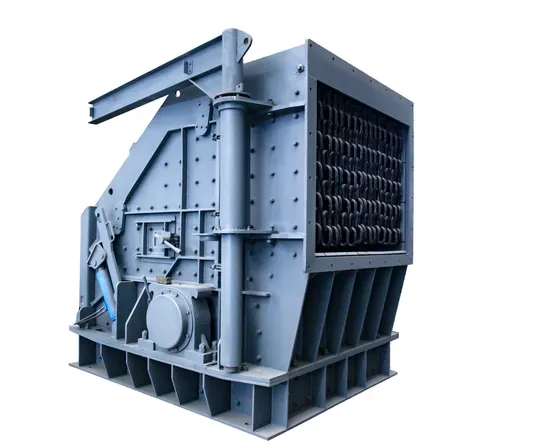

Mining Ores Rock Stone PF Impact Crusher Rock Machinery

Product Description

Detailed Photos
Product Advantages PFW European Impact crusher
1.High-chrome hammer plates are applled to rotor, making rotomore wear-resistant, of good dynamic and static balance and impact- reslstant, Hammer plates can be used upside down for longer use.
2.Clear part division and accurate posifioning, Three-chambetype is suitable for tertiary crushing, and two-chamber type for primary and secondary crushing, final products are omore cubic shape, discharge port can be adjusted.
3.The unlque splint and wedge are matched in the plate hammfixing device, which makes the hammer plate muchmore reliableand easler to change.
4. Equlpped with hydraulic frame opening device, replacement of wearing parts, such as hammer heads, can be accomplished quickly.
5. Hydraulic adjustment device lis used, so the discharging size can be changed quickly, reducing the downtime and maintenance time.
6. Integral cast steel structure is adopted for bearing seat, and radial strength of the bearing seatis highly strengthened.
Product Parameters

Model	Specifications (mm)	Input port size (mm)	Input size (mm)	Capacity (t/h)	Power (kw)	Weight (t)	Overall Dimension (L*W*H) (mm)
PFW1214	Φ1150×1400	570×1430	250	90-170	132	16	2550*2310*2100
PFW1215	Φ1300x1500	625x530	300	180-270	200	20	2960*2570*2380
PFW1415	Φ1400x1500	800x1530	350	280-350	250	22.5	3120*2650*2660

Packaging & Shipping To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
After Sales Service
