45 Ton Per Batch Rice Grain Dryer

Product Description

Product Name: Capacity (paddy): Moisture Reduction Rate: Weight: Total Power(Kw): Voltage: High Light:

Agricultural Dryer Machine	3000*3~15000*3 Kgs
0.6-1.2%/h	3500*3 Kgs
8*3	380 V/ 220V
rice dryer machine, paddy grain dryer

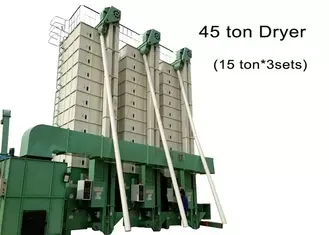

45 ton (one furnace three dryers) batch recirculating rice grain dryer for farm use
Product Advantages - Various Application for paddy, wheat, corn, rapeseed, soybean, other seeds;
- High drying speed: reduce 1% moisture per hour on average;
- Multiple heat source available (fuel, gas, steam boiler, biomass furnace etc.)
- Indirect heating technology: less pollution and more safety;
- Various safety device to run the grain drying easily;
- Stable Quality after long running time.

Low temperture Grain Dryer Specification
Model			5HJM-15 (*3set)
Loading capacity	Paddy(kg)		(3000-15000)*3set
	Wheat(kg)		(3500-18000)*3set
Dimension(mm)	H		9385
	L		3791
	W		2250
Electric Power	Voltage		three phase 380V,single phase 220V/50Hz
	Total Motor power (kw)		8
Function	Loading time(min)	paddy	55-60
		wheat	50-55
	Unloading time(min)	paddy	50-55
		wheat	45-50
	Drying rate (%/h)		0.6-1.2
Device	Safety Device		wind pressure switch, full load buzzer,thermal-over relay,temperature controller,hot air temperature sensor,overload protection device,leakage protection device
	Standard Device		online moisture monitor,grain temperature sensor,fault removal sensor, dust device
1.Specification is subject to change without notice.
2.The parameters are just for reference.The moisture of the paddy is from 24% to 15% and 28% to 12.5% for wheat.Actual datas will be differed from variety,moisture content and temperature.

Optional Equipment: hot-air furnace, steam heat exchanger, heat-conducting oil heat exchager, outlet pipe.

Packaging & Shipping

Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.

Our parts warehouse

We have parts warehoue to make sure deliver parts of machine to custome timely. and provide customer best after sale service.

Our company

"Quality is our culture". Our boss is very strict on production and management. We have a professional designer team and engineers. And our factory have cooperated with University of Science and Technology in agricultural machinery industry. So we make sure you high quality of product and timely delivery.Weclome to inquiry!!!

CNC-machining-center Gantry-mahining-center Welding Robot

Auto Bending Machine Laser Cutting Machine Automatic Coating Line
