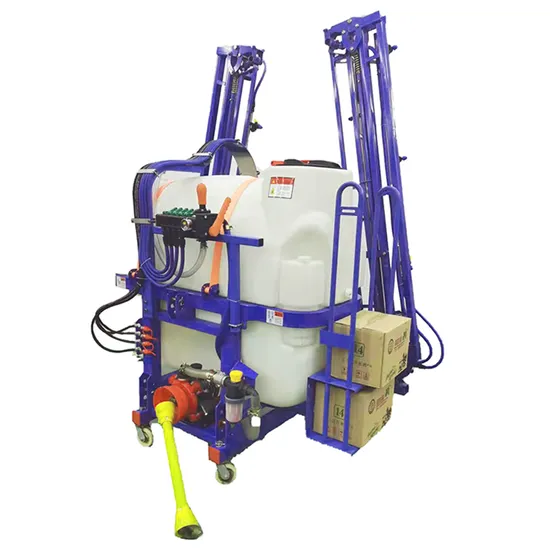

Quick Connection Package for Export Agricultural Tractor Mounted Boom Sprayer
| US$400.00-2,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
3WPX-800
Installation
Quick Connection
Liquid Contained
Pesticide
Spraying Shape
Full Cone
Volume
650-1500L
Power Supply
Tractor
Type
Tractor Mounted Boom Sprayer
Boom
12.5m
Tank Capacity
800L
Transport Package
Standard Package for Export
Specification
2100x1250x2350mm
Trademark
YAODA
Origin
China
HS Code
8424490000
Production Capacity
500 PCS/Month
Product Description
| Model | 3WPX-650 | 3WPX-800 | 3WPX-1000 | 3WPX-1500 |
| Power | ≥30hp | ≥50hp | ≥70hp | ≥100hp |
| Tank capacity | 650L | 800L | 1000L | 1500L |
| Mixing way | Jet mixing | Jet mixing | Jet mixing | Jet mixing |
| Folding way | Hydraulic folding and manual lifting | Hydraulic folding and manual lifting | Hydraulic folding and manual lifting | Hydraulic folding and manual lifting |
| System work pressure | 0.3-0.5Mpa | 0.3-0.5Mpa | 0.3-0.5Mpa | 0.3-0.5Mpa |
| 5 Filtration system | Tank inlet, pump inlet and outlet ,nozzle,filter | Tank inlet, pump inlet and outlet ,nozzle,filter | Tank inlet, pump inlet and outlet ,nozzle,filter | Tank inlet, pump inlet and outlet ,nozzle,filter |
| Walking speed | 4-20km/h | 4-20km/h | 4-20km/h | 4-20km/h |
| Overall dimension | 2100x1220x2350mm | 2100x1250x2350mm | 2100x1300x2350mm | 2100x1350x2350mm |
| Weight | 350KG | 350KG | 380KG | 450KG |
| Pump type | Diaphragm pump (4-cylinder) | Diaphragm pump (4-cylinder) | Diaphragm pump (4-cylinder) | Diaphragm pump (4-cylinder) |
| Pump pressure | 2.5Mpa | 2.5Mpa | 2.5Mpa | 2.5Mpa |
| Pump flow | 150-160L/min | 150-160L/min | 150-160L/min | 150-160L/min |
| Pump speed | 600r/min | 600r/min | 600r/min | 600r/min |
| Boom | 12.5m | 12.5m | 12.5m | 12.5m |
| Spray height | 0.5-1m | 0.5-1m | 0.5-1m | 0.5-1m |
| Nozzle model | 3 nozzle holders | 3 nozzle holders | 3 nozzle holders | 3 nozzle holders |
| Spray angle | 110 ° | 110 ° | 110 ° | 110 ° |
| Nozzle flow | 0.9-1.5L/min | 0.9-1.5L/min | 0.9-1.5L/min | 0.9-1.5L/min |
| Clean water tank | 5L | 5L | 5L | 5L |
