Hydraulic Hot Press Machine for Construction/Furniture/Aviation/Film Faced Plywood Widely Used

Hydraulic Hot Press Machine for Construction/Furniture/Aviation/Film Faced Plywood Widely Used

US$140,000.00
1 Set
US$139,000.00
2+ Sets

Basic Info.

Type
Hot Press Machine
Automatic
Automatic
Certification
CE, ISO
Color
Customize
Function
Put Pressure on The Plywood
Core Components
Motor, PLC
Power
800 Ton
Main Cylinder
320*2100mm* 4 PCS
Lifting Cylinder
160*2100mm* 2 PCS
Transport Package
Plastic Film / Plywood
Specification
4220*2020*11300 mm
Trademark
ZHONGHE
Origin
Linyi City, China
HS Code
847930000
Production Capacity
3 Sets / Month

Packaging & Delivery

Package Size
360.00cm * 137.00cm * 420.00cm
Package Gross Weight
42000.000kg

Product Description

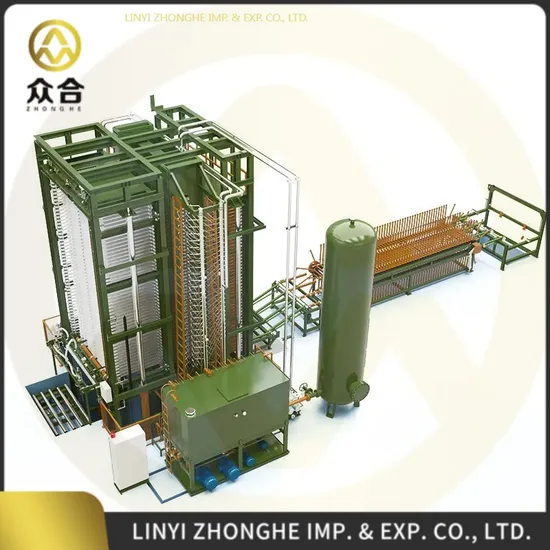

film faced plywood hot press machine


Detailed Photos

Product Parameters
500Ton Hot Press Machine
Pressure
 500tons
Layers
 15Layers
Hot platen distance
 70mm
Hot plate qty
 16pcs
Heating platen size
 2700*1370*42mm
Qty of Cylinder
 2
Diameter of cylinder
 360mm
Stoke of cylinder
 1050mm
Upper ,bottom crossbeam
900mm
Thickness of main frame steel
35mm Q235
Overall dimension
3550*1370*4650mm
Weight
About 38Tons

600Ton Hot Press Machine
Pressure
 600tons
Layers
 10Layers
Hot platen distance
 100mm
Hot plate qty
 11pcs
Heating platen size
 2700*1370*52mm(two inlet two outlet)
Diameter of cylinder
 6*ø220mm,2*ø120mm,(lifting cylinder),totoal 8cylinder,Wuxi cylinder
Stoke of cylinder
 1000mm
Upper ,bottom crossbeam
 900mm
Thickness of main frame steel
 35mm Q235
Overall dimension
 3600mm*1370mm*4200mm
Weight
 About 42Tons

800Ton Hot Press Machine
Pressure
 800tons
Layers
 25Layers
Hot platen distance
 80mm
Hot plate qty
 26pcs
Heating platen size
 2700*1370*42mm
Qty of Cylinder
 4
Diameter of cylinder
 320mm
Stoke of cylinder
 2000mm
Upper ,bottom crossbeam
 900mm
Thickness of main frame steel
 40mm Q235/(4 groups frame)
Overall dimension
 3600mm*1370mm*6720mm
Weight
 About 86Tons

Factory Display
Packaging & Shipping

ABOUT US

FAQ

1. Q: How many years had your company been established ? A:We specilized in wood based panel machinery for 10 years. 2. Q:QUALITY CONTROL? A: Each machine will be tested three times before delivery. 3. Q:DELIVERY TIME? A: 30-90 days upon receiving deposit. 4. Q:Factory Layout Design? A:We have engineer team to make layout drawing for customers for free. 5. Q:PAYMENT TERMS? A: T/T, L/C D/P are accepted. 6. Q:MOQ?

A: 1
