Automatic Servo Motor Cigarette Gift Paper Roll to Sheets Cutting Machine

Product Description

Product Description

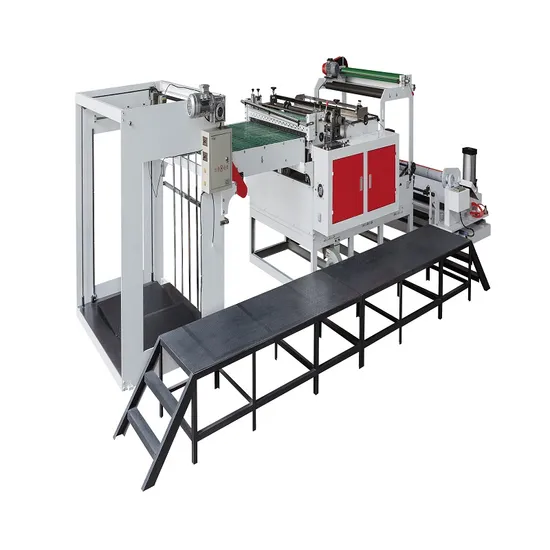

Roll to Sheets Cutting Machine for PE Laminated PP Roll(DC-HQ 1600)


Application
This machine is applied to the non woven material,film,paper cutting.Widely used in bag making,printing and packaging industries.
Usage:
This machine is suitable 2 rolls of white paper, plastic sheet and non woven roll materials. Applied touch screen,PLC system to control electrical system. Man-machine controlling system, digital display; fixed-length control step motor system control, automatic identification standard photoelectric switch to ensure the accuracy of the truncation. Advanced machine control mode, controlling the speed of the main motor, step motor, feeding motor through the computer to achieve synchronous operation. Also an inverter for feeding motor.

Features:

1.The machine adopts stepper motor control of fixed length cutting.With electric optical tracking system

2.The machine light,electricity and one easy,cut-cut,high precision,mechanical stability ,low noise

3.Motor frequency control,automatic counting,alarm stop and other functions

4.Heavy quality tool cutting,product neat,without edges.

Main Technical

Model	ML-HQ800	ML-HQ1000	ML-HQ1200
Production speed	20-140pcs/min	20-140pcs/min	20-140pcs/min
Bag width	100-750mm	100-950mm	100-1150mm
Bag length	30-1000mm	30-1000mm	30-1000mm
Bag thickness(weight)	20-150g	20-150g	20-150g
Voltage	380v/220v	380v/220v	380v/220v
Total power	3kw	4kw	6kw
Dimension	3200x1350x1150mm	3200x1450x1150mm	3200x1550x1150mm
