50km 1T2R Directional Automatic Drone Uav Vtol Tracking High Gain Antenna

Product Description

Product Description

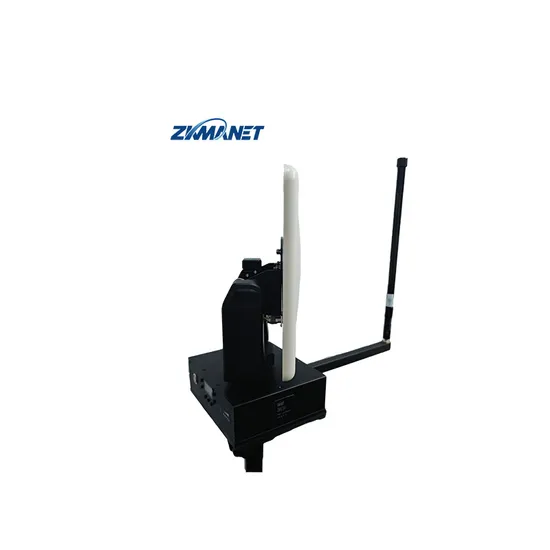

The ZKManet2441 is a ground terminal designed for long distances video data communication. It has built-in GPS tracking module and wireless communication module. The airborne GPS module feeds GPS/BD coordinate information to the wireless communication module through serial port for transparent transmission. The ground terminal calculates the pointing angle based on its own latitude and longitude and that of the airborne module. This ensures your ground panel antenna is always aligned with your airborne module, maintaining the best possible wireless reception and significantly increasing the range. It adopts 1T2R dual-antenna transmission, with a high-gain directional antenna for sending and receiving, and an omnidirectional antenna for receiving, which can transmit signals more effectively.
Features
* 2W power output for up to 50km range
* Automatic calibration algorithm at startup
* With main and sub (LoRa) dual links to ensure timely refreshing of GPS data
* Using 1T2R dual-antenna for more reliable transmission
* 360-degree twist-free slip ring
Specifications

Model	ZKManet2441	Brand	ZKMANET
RF Parameters	Frequency	800MHz/1.4GHz/2.4GHz(Customizable)
	Bandwidth	5MHz/10MHz/20MHz
	RF Channel	1T2R
	Output Power	2W
	Range	50km(LOS)
PTZ Parameters	Motor Torque	30N*m
	Rotation Angle	360°horizontally, 90°vertically
	Angle Accuracy	±2°
	Maximum Motor Speed	0.21s/60°
Interface Parameters	RF Interface	N*1,SMA*2
	LAN Interface	Waterproof aviation connector
	Power Interface	Waterproof DC connector
Network Parameters	Data Rate	30Mbps(Max)
	Encryption	ZAES128
Physical/Environment	Dimensions	306*396*416mm
	Weight	4.2kg (w/ battery & antenna)
	IP Rating	IP65
	Working Temp	-40ºC~+60ºC
Electrical Parameters	Power Supply	DC12V
	Power Consumption	<30W

Dimensions

Panel Description
GPS Antenna Directional panel antenna interface, SAM F LoRa link antenna interface, SMA F Power button OLED screen (1.3") and configuration buttons (up, down and menu) Battery indicator Omnidirectional antenna interface, SAM F LAN & Serial port - 9 pin aviation connector (4 pins for LAN, 3 pins for TTL and 2 pins not used) DC power input interface, waterproof Application
