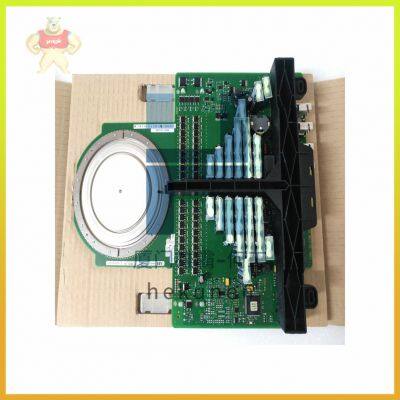

5SHX1445H0002 3BHL000387P0101 ABB IGCT thyristor module

Product Details

Product Description

Product Description
5SHX1445H0002 3BHL000387P0101 ABB IGCT thyristor module
5SHX1445H0002 3BHL000387P0101 ABB IGCT thyristor module
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
CS31 (Communication Serial Field Bus, developed by ABB in
1989) for continuity and migration
CS31 is a proprietary master/slave field bus. It is characterized by simple handling, easy configuration, and inexpensive installation. The COM1 interface of the
AC500 can be configured as a CS31 field bus master.
Communication
Is handled using polling, i.e. the master sends a request to the slave and then
receives the response. The CS31 operating mode of COM1 is set using the
engineering tool.
Topology
Multi-point line, RS485, approved without branch lines. A system consists of one
master and up to 31 slaves. The maximum cable length is 500 m, or 2 km with an
amplifier. Slaves are primarily decentralized input/output modules with integrated
CS31 bus connection.
Data transmission
Is performed at 187.5 kB/s. Each telegram has an 8-bit CRC appended. The
telegrams enable process data (input/output data) to be written and read.
Transmission medium
Primarily a twisted-pair, shielded cable with terminators. Other transmission
media: fiber-optic cables via a converter (glass fibers max. 3 km, plastic max. 100
m), contact lines, slip rings (bus length max. 50 m) and data photocells.
Diagnostics
Detailed diagnostic messages for rapid trouble-shooting are shown on the CPU
display.
