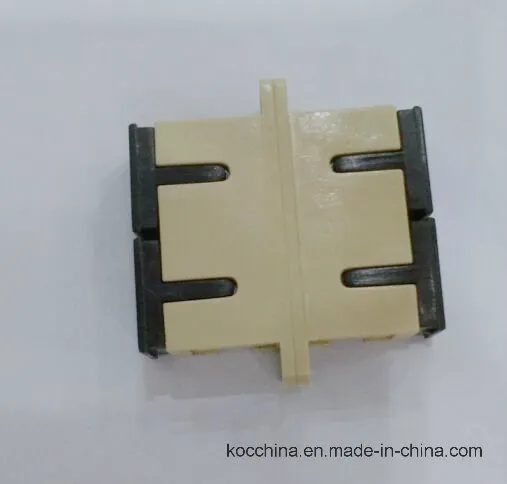

Sc Fiber Optic Duplex Adaptor with Beige Color

Product Description

SC duplex fiber optic adaptor, symmetry type
Brief Introduction:
The SC adapters are use ceramic sleeve to connect connectors although they are different size and appearance. Each species has a lot of types and colors can be chose. Single mode and multi-mode are different performance and price. These adapters can locking the connectors and get low insertion loss to transmission optical signal,ARK's adapters are meet the Telcordia and IEC-61754 stander, all material compliance RoHS require.

APPLICATIONS:
1.Test equipment.
2.Connection of optical links in optical active devices
3.Jumper connection
4.Production and testing of optical devices
5.Optical fiber communication system,CATV
6.LANs and WANs
7.FTTX
8.CATV
9.Active device/Transceiver
10.Telecommunication networks
11.Metro
12.Multimedia
13.Data processing networks
14.Test equipment
15.Premise installations
16.Gigabit Ethernet
17.Video

FEATURES:
1.Low insertion loss and back reflection loss
2.Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
3.High precision alignment
4.Compact design
5.Plastic housing
6.Great repeatability and interchangeability
7.Hign reliability
8.Compliant with IEC and Rohs standards
Specifications:

ITEM	parameter
item	single-mode	multi-mode
adapter color	blue,green	beige,magenta
test wavelength	1310nm,1550nm	850nm,1300nm
insertion loss	typical≤0.15dB,MAX≤0.20dB	typical≤0.15dB,MAX≤0.20dB
Repeatability	≤0.10dB
interchangeability	≤0.20dB
durability	≤0.20dB,max change 500mating
adapter type	SC/ST/LC/FC
channels	simplex,duplex,4channels
material	plastic or metal
sleeve material	ceramic(ZrO2)or customized
operating temperature	-20ºC to +70ºC
storage temperature	-40ºC to +85ºC

Pictures:


Our Sevice:
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
About KOC
Shenzhen KOC Communication Co., Ltd. is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
