Used Tower Crane Tower Crane Tc 7022-12t

Product Description

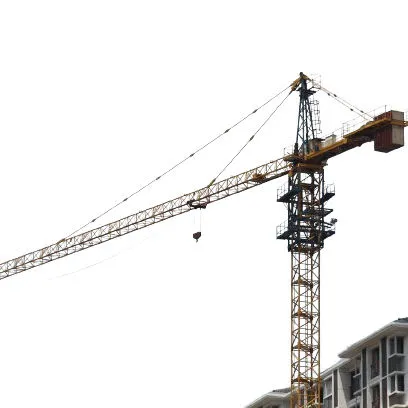

QTZ40 QTZ50 QTZ63 QTZ80 QTZ100 QTZ125 Tower Crane for Construction Building Tavol brand series of tower cranes, ranging from QTZ31.5 to QTZ315 has a horizontal jib frame, a jib trolley radius chang mechanism and a hydraulic self-raising mechanism. It is original in design, reliable in operation and satisfactory in shape. Equipped with necessary safety devices, these cranes show good speed-control capacity, satisfactory operat stability and high work efficiency .It can be widely used for construction of high-rise hotels, residential buildings, high-rise industrial buildings, large-span factory buildings and tower-like buildings like tall chimneys. 1.reduce the dismounting requirements, lower weight, low mounting height, dismount each mast at a time in the air, save the labor cost, safety and fast.2. it is suitable for crossover work of the cranes, without the tower cap and pull rod, the safety will be increased when there need the crossover work.3. It is suitable for the special requirement about the height, such as airport nearby, tunnel, workshop ,and the construction site with high-tension cable.4. It is suitable for the construction site that has the requirement about the crane boom, it can be used as internal climbing crane in the high-rise buildings, irregular roof or small areas.5. It is very convenient for dismounting in the restricted construction site, dismount each crane boom at a time by manual.6.The steel structure of crane boom has long using life and high safety standard.7. The crane boom is good applicability, high-usage,the design of the topless tower crane boom is easy for realizing the serialization and standardization. Reduce the design and making cost.8. Low design cost, short cycle, can much better satisfy the multiple demands of the customers.
Related tower crane model specifications:

Model	Max load	Jib length	Free standing height	Tip load	Mast section size
QTZ50(4810)	4t	48m	29m	1t	1.5×1.5×2.2m
QTZ50(5008)	4t	50m	29m	0.8t	1.5×1.5×2.2m
QTZ63(5013)	5t	50m	38m	1.3t	1.5×1.5×2.5m
	5t	50m	38m	1.3t	1.6×1.6×2.5m
	5t	50m	42.5m	1.3t	1.6×1.6×2.8m
	6t	50m	40m	1.3t	1.6×1.6×2.5m
	6t	50m	42m	1.3t	1.6×1.6×2.8m
	5t	50m	36.5m	1.3t	1.2×1.2×3.0m
	6t	50m	44m	1.3t	1.2×1.2×3.0m
QTZ80(5610)	6t	56m	42m	1.0t	1.6×1.6×2.8m
	6t	56m	44m	1.0t	1.2×1.2×3.0m
QTZ80(5612)	6t	56m	40m	1.2t	1.6×1.6×2.8m
QTZ80(5613)	6t	56m	42m	1.3t	1.6×1.6×2.8m
	6t	56m	44m	1.3t	1.2×1.2×3.0m
QTZ80(6010)	6t	60m	40m	1.0t	1.6×1.6×2.8m
	6t	60m	45m	1.0t	1.8×1.8×2.8m
	6t	60m	44m	1.0t	1.2×1.2×3.0m
QTZ80(6012)	6t	60m	40m	1.2t	1.6×1.6×2.8m
	6t	60m	45m	1.2t	1.8×1.8×2.8m
	6t	60m	44m	1.2t	1.2×1.2×3.0m
QTZ100(6013)	6t	60m	40m	1.3t	1.6×1.6×2.8m
	8t	60m	45m	1.3t	1.8×1.8×2.8m
	8t	60m	44m	1.3t	1.2×1.2×3.0m
QTZ125(6513)	6t	65m	45m	1.3t	1.8×1.8×2.8m
	8t	65m	45m	1.3t	1.8×1.8×2.8m
QTZ125(6015)	8t	60m	45m	1.5t	2.0×2.0×3.0m
	10t	60m	45m	1.5t	1.8×1.8×2.8m
	10t	60m	44m	1.5t	1.6×1.6×3.0m
	10t	60m	60m	1.5t	2.0×2.0×3.0m
QTZ160(6024)	10t	60m	59.7m	2.4t	2.0×2.0×3.0m
	10t	60m	64.7m	2.4t	2.0×2.0×3.0m
QTZ160(6516)	8t	65m	50m	1.6t	1.6×1.6×3.0m
	8t	65m	50m	1.6t	1.8×1.8×2.8m
QTZ200(6520)	10t	65m	59.7m	2.0t	2.0×2.0×3.0m
	10t	65m	64.7m	2.0t	2.0×2.0×3.0m
	10t	65m	53.5m	2.0t	2.0×2.0×3.0m
QTZ250(7021)	12t	70m	59.7m	2.1t	2.0×2.0×3.0m
QTZ250(7025)	12t	70m	59.7m	2.5t	2.0×2.0×3.0m
QTZ250(7032)	12t	70m	52.5m	3.2t	2.0×2.0×3.0m
	12t	70m	57.5m	3.2t	2.0×2.0×3.0m
	12t	70m	38.8m	3.2t	2.0×2.0×3.0m
QTZ250(7027)	16t	70m	52.5m	2.7t	2.0×2.0×3.0m
	16t	70m	38.8m	2.7t	2.0×2.0×3.0m
QTZ315(7530)	16t	75m	52.5m	3.0t	2.0×2.0×3.0m
QTZ500(8522)	25t	85m	73m	2.2t	2.5×2.5×5.95m

Certifications
Packaging & Shipping
Packaging Details: 40 HC containers; high quality Wodden cage for electrical parts Delivery
Delivery Detail: 25-30 days after received the deposit

Our Advantages
Hoisting mechanism using high-power motor, lifting power stronger, more stable operation; Rotating mechanism block torque is relatively large, relative to other equivalent models, the torque is more powerful. Machine modeling and painting for specialized industrial design, beautiful appearance coordination.
Performance Characteristics:
1. Stronger and better lifting performance.
2. Self-pressure counter weight technology, safe and reliable.
3. Aviation plugs, prevent misconnection; high system reliability and low maintenance cost.
4. Compact design of whole machine, transfer operation is convenient and efficient.
After Sales Service
1. We are very glad that customer give us some suggestion for price and products.2. We supply you installation video to assist you to install the crane to help you save the installation cost3. Send free spare parts within warranty time 4. Provide Installation manual and operation manual ,electric drawing5. 24*7 hours on line service
FAQ
Tower Cranes are available in hammerhead, flat top and luffing jib varieties with different hook heights, jib lengths and capacities.Unsure which crane to choose? Tell us your requirements and we will assist you in selecting the most appropriate tower crane according to your construction site needs.
1.what is the tower crane height you need?
2.what is the Jib Length?
3.what is the Tip Load?
4.what is the Max.Lifting Load?
5.what is the Power supply?
6.What is the quantity you need?
7.FOB Qingdao price or CIF price, if you need CIF price, please tell me your destination port.
Please reply us the above the questions, so we can give you a best price as for your requirements, Thank you!
