ABS Offshore Application Air Tugger Winch of High Quality

Product Description

ABS Offshore Application Air Tugger Winch of High Quality
Introduction:

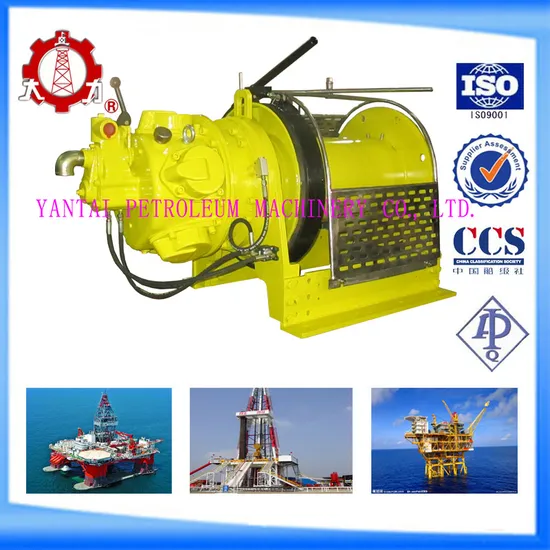

The JQHSB50*12 Double-braking Air Winch adopts compressed air as power to drive the TMH17 piston air motor, transferring torque to drum through the second Gear Reducer. By operating manual diversion valve on the motor, the winch can perform hoisting, lowering and stopping actions to the wire rope. Considering security, it is specially designed with hand and foot double manual brakes for fear of unexpected accidents. The Double-braking Air Winch is especially fit for hauling, lifting and other work in mines, construction engineering sites, platforms of oilfields off-sea and inland, etc. (Its maximum load is up to 5 ton) The roatry-base make it flexible on the oilfield floor, and the pin-base assure its safety.
Features:
1. Compact in size and light in weight, portable to move and easy to install;
2. Simple and reliable operation with little noise;
3. Stable in inflammable, explosive, wet, damp and other extremely operating conditions;
4. Low maintenance relieves your anxiety and assures you to use it freely.
5. High starting torque ensures it starting with load and performing hoisting, lowering and stopping actions easily;
6. Especially fit for hauling, lifting and other work in mines, construction engineering sites, platforms of oilfields, etc;
7. The Normal Pull Force can be tailor-made to your requirement;
8. Good after-sale service with high quality.
Technical Parameters:

Name		Parameters
Pressure of Compressed Air		0.6-0.8 MPa
Rated Pull Force		5 Tons
Rated Cable Speed		12 m/min
Wire Rope Diameter		16 mm
Wire Rope Storage		120 M
Piston Air Motor	Max. Power	17 kW
	Cylinder number	5 pcs
	Air Consumption	247 L/S
Drum	Inner Diameter	222 mm
	Width	335 mm
	Wheel Rim Diameter	465 mm
Configuration	Length	1250 mm
	Width	810 mm
	Height	750 mm
Weight		498 kg
