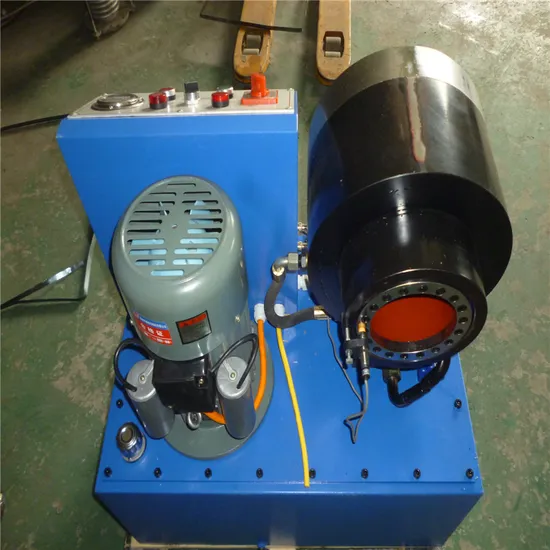

User-Friendly Hydraulic Hose Crimping Machine with Efficient Wood Case
| US$1,450.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HY-68
Automatic Grade
Automatic
Structure
Vertical
Power
2.2/3.5kw
Driven Type
Driven Type
Packaging Material
Wood Case
Application
Machinery & Hardware
Color
Blue or Red
Crimper Range
1/4 Inch to 2 Inch
No. of Die Set
10 Sets
Weight
260 Kg
Size
470*690*780
Noise
65dB
Transport Package
Wooden Case
Specification
490*760*690
Trademark
JJR
Origin
Tianjin
HS Code
8477800000
Production Capacity
100 Sets/ Month
Product Description
Hydraulic Hose Crimper - The Ultimate Rubber Hose Crimping MachineProduct Description:
product name | HY-68 |
hose size | 6-51mm or 1/4''-2'' (up to 4-wire) |
max opening | 90mm |
dimension | L670*W470*H790 |
rated pressure | 31.5mpa |
the largest crimping pressure | 450T |
crimping precision | 0.02mm |
motor power | 3.5kw |
weight | 260kg |
dies | 10sets |
Why Choose Our 220V/380V Hose Crimping Machine for Your Hydraulic Needs?
1. Our machine is equipped with premium imported original components, ensuring unwavering performance and reliability.
2. Features a generous opening with interchangeable dies, making it ideal for crimping unique elbow fittings with ease.
3. Benefit from a precise numerical regulator with an accuracy of 0.01 mm, providing exceptional precision.
4. Fitted with a protective adapter, it safeguards the dies against incorrect installations, enhancing longevity and safety.
5. Experience swift and seamless die changes, facilitating a hassle-free operational process.
We offer a variety of hose crimping machines for different sizes, including options for 4-inch, 5-inch, and 6-inch hoses.
For further details or any inquiries, please feel free to reach out to us without hesitation.
