China CNC Turning Machine CNC Slant Bed Turning Machine Tck56y

Product Description

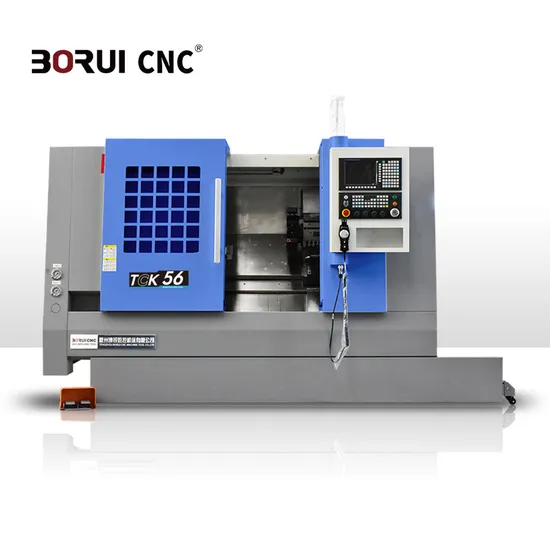

China Cnc Turning Machine Cnc Slant Bed Turning Machine TCK56Y


Product Description
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece,and could also turn various threads,cricle arc,cricular cone,inside and outside surface of revolved body.This machine is widely used in sanitary,valve,electrical appliance,instrument,automobile ,motorcyle,bearings and so on.

Product Parameters

Specifications	Unit	TCK56
Max.swing over bed	mm	560
Max. processing length	mm	500/1000
Standard cutting diameter	mm	280(8 station tower)
Max. processing diameter	mm	350(8 station tower)
Standard cutting diameter	mm	280(12 station tower)
Max. processing diameter	mm	280(12 station tower)
Max swing over carriage	mm	350
Spindle type		A2-6
Taper of spindle		65
Hole Through Spindle	mm	50
Max. spindle speed	rpm/min	50~4500
Max. spindle output torque	Nm	235
Spindle speed steps		stepless
Motor power	kw	15(15 minutes)/11(rated )
Chuck diameter	mm	8"
X-axis is moving fast	m/min	30
Z-axis is moving fast	m/min	30
X-axis travel	mm	200
Z-axis travel	mm	560/1050
Integral tail seat travel		450/950
Tail seat sleeve taper	MT	MT5
Turret type		horizontal 8 station
Cylindrical knife	mm	25X25
Boring tool bar diameter	mm	40/32/25/20
Max. load-bearing capacity of disk	kg	200
Maxi. bearing capacity of shaft class	kg	500
Center height	mm	1050
Weight	kg	4000/4500
Size	mm	2790/3570X1900X1850

Details Display

Packaging & Shipping
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
