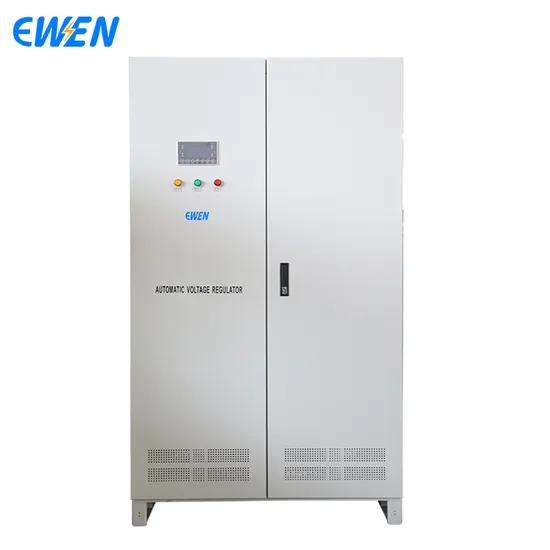

220V 230V 480V Voltage Regulator Stabilizer 3 Phase Industrial Automatic AVR Stabilizers

Product Description

220V 230V 480V Voltage Regulator Stabilizer 3 Phase Industrial Automatic AVR Stabilizers Product Description The rated capacity of SBW series three phase automatic voltage regulator (hereinafter referred to as SBW voltage regulator) ranges from 30KVA to 3000KVA for normal products. The normal voltage regulation range is 380V±20% (It could be customized according to your requirements).
SBW voltage regulator is applicable in areas where the power voltage fluctuates or where the voltage fluctuates due to loads change. It features in large capacity, high efficiency, no additional waveform distortion, sound voltage regulation performance, suitability for various loads, strong instantaneous over-load bearing capability, suitability for constant work. It is designed with manual and auto switch function and various protection functions, including over-voltage, under-voltage, over-current, phase lack, phase failure, and mechanic fault etc.
Product Parameters

Product Name	Three Phase AC Power Automatic Voltage Stabilizer/Regulator
Rated Capacity	500KVA (Could be customized)
Product Model	SBW-500KVA
Input Voltage Range	380VAC±20% (Could be customized)
Rated Output Voltage	380V/220V/230V/240V/400V/415V/440V/480V(Could be tailored)
Working Frequency	50HZ-60HZ
Output Accuracy	±2%
Insulation Class	F
Waveform Distortion	No Additional Waveform Distortion
Phase	Three Phase
Working Temperature	-10ºC~+50ºC
Ambient Relative Humidity	30%-80%
Protection Class	IP 23
Cooling Way	Dry Type Air Colling
Insulation Resistance	≥5MΩ
Working Effiency	>90%
Current Type	AC
Product Type	Servo Motor Type
Regulation Method	Automatic Regulation Three Phase Simultaneous Regulation (Individual Regulation Could Be Customized)

Product Advantages SBW automatic voltage regulator/stabilizer features in fast response speed, high efficiency, high output accuracy, automatic voltage regulation, no additional waveform distortion, sound voltage regulation performance, and suitability for constant work etc. It is designed with various protection functions, including over-voltage, under-voltage, over-current, phase lack, and phase failure protections etc.
Product Details
We use LCD multi-functional display screen to indicate the following data: input voltage, output voltage, output current, and working status etc. We could monitor the figures directly, which is very user-fiendly. Besides, the buttons on the screen are for function setting, which makes the AVR more flexible.
These four parts are the major elements for this three phase automatic voltage regulator stabilizer. High quality parts helps to facilitate the stable performance of the AVR.
For wiring terminals, we would use bus bars for input and output side. And there would be clear marks to indicate both sides.
Note: the actual wiring terminals for final product is subject to the finished product layout. This is for your reference.
There are various protection functions: over-voltage protection, under-voltage protection, over-current protection, short circuit protection, over-load protection, phase failure protection etc, thus to ensure the safety of the voltage regulator/stabilizer itself and the latter load equipment.
Product Cases
Ewen Electrical has been dedicated to designing customized products for our customers. If you have specific technical requirements, the AVR could be customized according to your needs.
For SBW type three phase automatic voltage regulator stabilizer, the rated capacity could be from 30KVA to 3000KVA, the rated working voltage could be customized as 380V/400V/415V/420V/440V/480V etc. The input voltage range could be customized according to your needs. And regulation type could be three phase simultaneous regulation or separate regulation.
Product Applications SBW voltage regulator is widely applied in industrial area, medical area, agricultural area, and transportation area. It is also used for voltage regulation for factories where there are various electrical equipment, like CNC machine, lathe, laser-cutting machine, generator, and other appliance.
