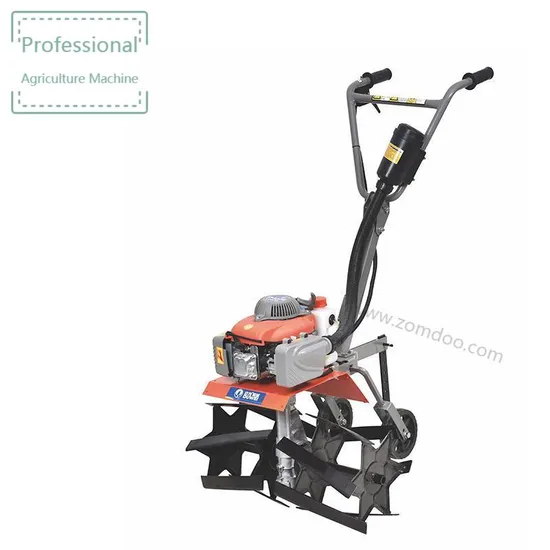

Mini Tiller, Walking Tiller 53cc
| US$180.00-250.00 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
ZD-1WG2.2Q-38
Application Field
Agriculture, Gardening Ground
Farming Policy
Dry Cultivating Machinery
Power Source
Gasoline
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Semi Hanging
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Color
Orange
Warranty
One Year Warranty for Engine
Reduction Gear Ratio
1:29
Starting System
Recoil
Max.Power
2.2kw
Rotational Speed
6500rpm
Productivity
0.04~0.06hm2
Engine Type
2 Stroke,Single Cylinder, Forced Cooling
Transport Package
High Strength Carton Box
Specification
Working Width: 380mm
Origin
China
HS Code
8432290000
Production Capacity
20000PCS Per Year
Product Description
Product Description1. Centrifugal clutch is adopted, which makes the operation easier and safer.
2. It adopts gear + worm gear two-stage speed reduction, large speed ratio,
small volume, light weight and large transmission troque.
3. Two stage air filter is adopted to isolate dust, protect power and prolong service life.
4. Sepcialized tool selection, suitable for a wide range of crop fields.
5. Strengthen the cutting and Anti-entanglement.
Detailed Photos
Product Parameters
| Product Name | Mini Tiller, Walking Tiller |
| Model | ZD-1WG2.2Q-38 |
| Engine Model | 144FA Single-Cylinder,Air-cooling,4-stroke |
| Power/Rotational Speed | 2.2kw/6500rpm |
| Starter | Manual(Recoil Starter) |
| Fuel Oil | Pure Gasoline |
| Fuel Tank Capacity | 1100ml |
| Oil Tank Capacity | 250ml |
| Clutch Type | Automatic Centrifugal |
| Reduction Gear Ratio | 1:29 |
| Oil Capacity of Gearbox | 200ml |
| Working Width | 380mm |
| Productivity per hour | 0.04~0.06hm2 (h/m) |
