Double Wall Plastic Sippy Cup Making Machine with Strew

Product Description

Double Wall Plastic Sippy Cup Making Machine with Strew
Product Description

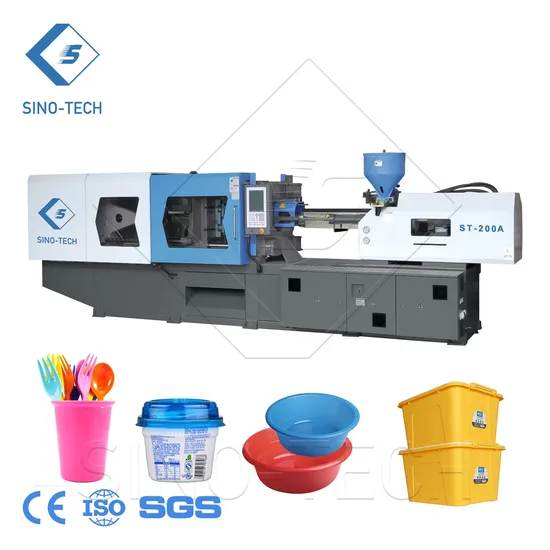

Sino-tech SElll Series High-performance High speed Thin-wall Injection Molding Machine.
Specially designed for high-speed thin-wall products, multiple-cavity products and relevant civil products in current market. The model is created in accordant with latest national design concept, combining decades of experience in design and manufacture of the company.
1.Higher work efficiency. According to features of injection, optimize and integrate injection, clamping, hydraulic and control units, which has greatly shortened the production cycle.
2.Stricter safety standards.Comply with national mandatory safety standard to guarantee operators' safety.
3.More perfect organization.Frame-type rack design; improve rigidity and strength on the basis of finite element analysis, which has greatly improved rack precision, reduced rack deformation and realized a more stable and smooth operation.
Product Parameters

Item		160SElll
		1600-629
Screw diameter	mm	40	45	50
Theoretical shot volume	cc	283	358	442
Shot weight (PS)	g	257	326	402
Shot weight (PS)	oz	9.1	11.5	14.2
Length/Diameter ratio	L/D	22.5	20	18
Injection pressure	MPa	223	176	142
Injection rate	cm³/sec	147	187	230
Injection stroke	mm	225
Max. Screw speed	rpm	274
Plasticizing capacity (PS)	g/s	23.2	30.0	33.6
Injection unit force	Ton	5.7
Carriage stroke	mm	320
Clamping force	Ton	160
Max. daylight	mm	1000
Clamping stroke	mm	480
Distance btwn. Tie bars	mm	470*470
Min mould dimension	mm	320*320
Mould thickness range	mm	150-520
Ejector force	Ton	7.7
Ejector stroke	mm	150
No. of ejector pins	unit	5
Max. motor power	kW	16.4
System pressure	MPa	17.5
Hydraulic pump capacity	L/min	112.5
No. of heater zones	unit	4+1+1
Heater input power	kW	11.48
Ultimate capacity	kw	28.88
Current	A	39.5
Net weight	Ton	5.68
Oil filling capacity	L	320

Detailed Photos

Application

Company Profile

FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
