Ck46D Slant Bed Turret CNC Lathe Machine for Cutting Metal Tools

Product Description

Ck46D Slant Bed Turret CNC Lathe Machine for Cutting Metal Tools

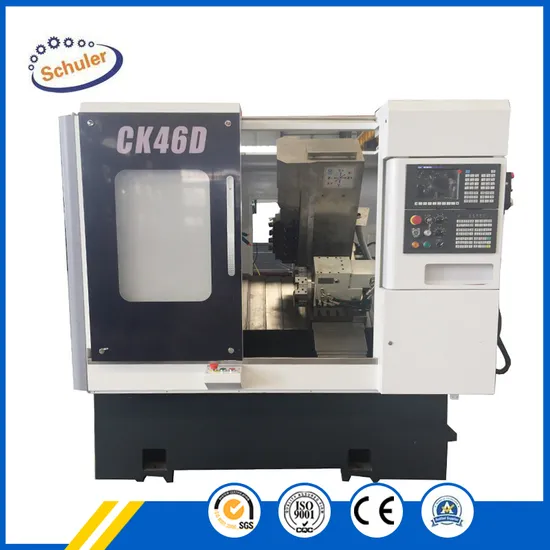

Product Picture:
CNC Lathe Application:
CK46D Horizontal Turret CNC Lathe Machine for Cutting Metal Tools is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace, military and other industries on the rotary parts for efficient, high-volume, high-precision processing. Processing accuracy can reach 7 level.
CNC Lathe Features:
CK46D Horizontal Turret CNC Lathe Machine for Cutting Metal Tools
1.45 degree slant bed cnc lathe
2.High accuracy Taiwan linear guideways
3.Chip conveying capacity is large and convenient ,customer could choose chip conveying in the right or in the back
4.Spindle unit has two types ,the heavy duty cutting type and the high speed type.
5.The first one is suitable for bearing and gear processing .
6.The second type is suitable for high speed and jhigh precision processing.
7.Customers could choose any type of them
8.Screw pre-stretching structure
9.Gang type tool post
10.Optional turret
CNC LatheTechnical Specifications:

Specifications	Units	CK46D
Max.swing over bed	mm	450
Max. Swing over cross slide	mm	130
Max. Processing length	mm	450
Cross slide length	mm	780
Lathe bed straucture		30° integral inclined lathe
Distance between cross slide and spindle axis	mm	80
Spindle nose		A2-5
Spindle (C axis )speed range	R/min	50-4500
Spindle bore	mm	56mm
Bar capacity	mm	45mm
Spindle (C Axis)motor	kw	7.5
Milling head		(side)4 (nose)4
Milling head power	kw	2.3
Milling head speed	R/min	3000
Distance of each milling head	mm	60
X axis travel	mm	500
Z axis travel	mm	450
Y axis travel	mm	240
Turret type		8 station hydraulic turret,4+4 milling head
X rapid traverse	Mm/min	24000
Z rapid traverse	Mm/min	24000
Y rapid traverse	Mm/min	15000
X/Z axis positioning accuracy	mm	0.006
X/Z axis repositioning accuracy	mm	0.003
Spindle (C axis)dividing positioning accuracy	mm	0.02''(70 arc-seond)
Spindle (C axis)dividing repositioning accuracy	mm	0.006''(20 arc-seond)
Machine dimension(LxWxH)	mm	2500x1800x1800
Net weight	Kg	3000

CNC Lathe Details Picture:
CK46D Horizontal Turret CNC Lathe Machine for Cutting Metal Toolswith details as follows
CNC Lathe In the Workshop:
CNC Lathe Package Delivery:
CK46D Horizontal Turret CNC Lathe Machine for Cutting Metal Toolswith details as follows with standard export package
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location
Our Company:
FAQ Q: How about your machine quality?We are worry about the quality.
A: Shandong Schuler Heavy Machinery Co.,Ltd focused on cnc lathe machines for up to 10 years, is China's mature brand. We "quality of survival" management philosophy, TCK6340 TCK6350 Slant Bed And Linear Guide Way CNC Lathe Price has won more and more customers love and support, we have a field factory, on the quality, you are welcome to visit the field at any time.
Q:Whether the machine price can be more discount?
A: Shandong Schuler Heavy Machinery Co.,Ltd is always provide high quality, TCK6340 TCK6350 Slant Bed And Linear Guide Way CNC Lathe Price, the price is different according to different cnc control system.
You are welcome to consult at any time.

Q:How about your manufactory in China ?
A:Shandong Schuler Heavy Machinery Co.,Ltd is located in Tengzhou,Shandong province that is the leading area in China .If you need more information about us or TCK6340 TCK6350 Slant Bed And Linear Guide Way CNC Lathe Price, we would like to talk with you.

If any questions pls feel free to contact me
