Multi-Component Fiber Researching Use Plunger Type Melt Spinning Machine

Product Description

Product Description
Product Description

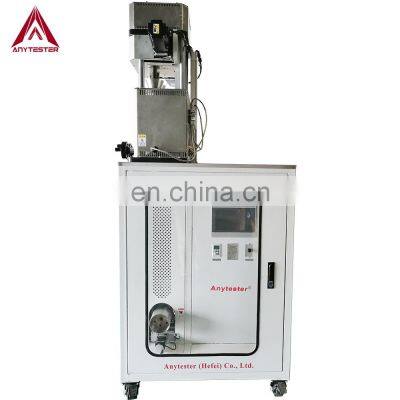

AT226 Series Plunger-type Melt Spinning Machine is used to carry out the melt spinning of polypropylene, polyester, polyamide and other special materials with plunger metering system. The raw material melts and flows into the plunger-type cylinder. The plunger-type cylinder driven by the servo motor can precisely monitor and control the flow of melt liquid. The melt liquid passes through the filtering plate, distributing plate and then is extruded through the spinneret plate to spin. The spun fiber can be direct wound onto the winding roll or passes through coagulating bath (optional), heat stretching (optional), relax hot setting (optional) and then be wound onto the winding roll.
Specification

Model		AT226B
Number of plunger metering part		2
Structure	Screw feeder & driving motor Adjust screw speed to control feeding amount	25~500mm, adjustable
Material	316L stainless steel	2mm/min～1200mm/min, settable
Designed capacity of stock bin	200ml	2mm/min～1000mm/min
Power of driving motor	200W	20s±3s, 30s±5s
Structure	Melting & metering	99times max.
Cylinder material of plunger pump	306 stainless steel	350% max. while set 200mm gauge length
Inner diameter	40mm	AC220V±10%, 50Hz
Length	100mm	380mm×480mm×1450mm (L×W×H)
Designed pressure	3.5Mpa	122kg

Packing & Delivery

Packaging
Package Size (cm)	120*90*180CM
Weight	350 Kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip.  2. The box is filled with foam to protect the equipment from impact.  3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Item	T/T	EXW FOB CFR(C&F) CIF	50% T/T in advance, paid the balance before shipment
					FOB
				CFR(C&F)	50% T/T in advance,paid the balance against copy of B/L
				CIF
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 50,000usd
Delivery Time	60 days after receiving payment for one container
