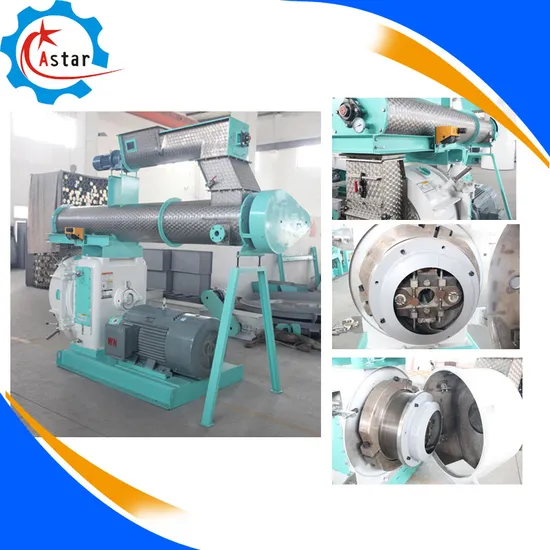

8t/H Output Horse Feed Making Machine for Sale
| US$11,000.00-38,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SZLH420
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Ring Die Pelleter
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Wet Expansion
Condition
New
Applicable Materials Shape
Powder
Name
8t/H Output Horse Feed Making Machine for Sale
Application
Poultry, Chicken, Cattle, Livestock etc
Power
37-160kw
Output
1-20t/H
Ring Die Diameter
320-768mm
Pellets Size
1-10mm
Rollers
2PCS
Delivery Time
Within 30 Days
Guarantty Time
12 Months
Transport Package
Wooden Case (Plywood)
Specification
CE certificate
Trademark
Astar
Origin
Chongqing, China
HS Code
8436100000
Production Capacity
10 Set/Month
Product Description
8T/H Output Horse Feed Making Machine For Sale1. 8T/H Output Horse Feed Making Machine For Sale For Sale :
1. Widely applied product with mature technology .
2. The main driving adopts high-precision gear drive, so that the output is improved by about 20% when compared with that of belt drive.
3. Imported high-quality bearing and oil seal are adopted to ensure efficient, stable and low-noise whole machine operation . the granulating room is equipped with air suction temperature reducing system .
4. The feeder adopts variable-frequency and variable-speed motor to ensure the quality of discharged particles .
5. Ring dies with multiple kinds of bore diameters are optional . and high-quality craft ring dies are adopted, so that the service life is long. The discharged particles are smooth and the quality is high .
6. International advanced compensation type snakelike spring coupling has the propertied of novel and compact structure, high safety, low noise and low fault rate.
7. Plus-size conditioner and jacket type conditioner are selectable to strength the particle conditioning effect.
2.8T/H Output Horse Feed Making Machine For Sale Technical Parameter:
Model | SZLH320 | SZLH350 | SZLH400 | SZLH420 | SZLH508 |
Capacity | 2-5T/H | 1.5-8T/H | 2-10T/H | 3-12T/H | 4-20T/H |
Main Motor Power | 37KW | 55KW | 75/90KW | 110KW | 132/160KW |
Screw Feeder Power | 0.55KW | 0.75KW | 0.75KW | 1.5KW | 1.5KW |
Conditioner Power | 2.2KW | 2.2KW | 2.2KW | 5.5KW | 7.5KW |
Ring die inner diameter | 320mm | 350mm | 400mm | 420mm | 508mm |
Ring die rotational speed | 305PRM | 336PRM | 307PRM | 287PRM | 287PRM |
Roller outer diameter | 140mm | 165mm | 190mm | 206mm | / |
Dimension | 2300*1000*2100 mm | 3200*1100*1700 mm | 3200*1300*1900 mm | 3500*1300*2800 mm | 3500*1500*2900mm |
Pellets diameter: 2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Pellets shaping rate: ≥95%
Pellets stability in water: ≥20Min
Noise: ≤86dB(A) ≤90dB(A)
Roller working temperature: ≤85ºC
Steam working pressure: 0.1-0.4Mpa
Steam temperature: 130-150ºC
Any more information you need 8T/H Output Horse Feed Making Machine For Sale, please feel free to contact with us.
Mr. Jason
Chongqing Qiaoxing Machinery & Equipment Company
Website: http://qiaoxingmachinery.en.made-in-china.com
Add: Room 6088, Building 4th, No. 319 of Haier Road in Jiangbei District, Chongqing Municipality, Chongqing, China
Mobile:0086-15178920906
