Windbreak wall - wind and dust control barrier

Product Description

Product Description
View More, Click Here!

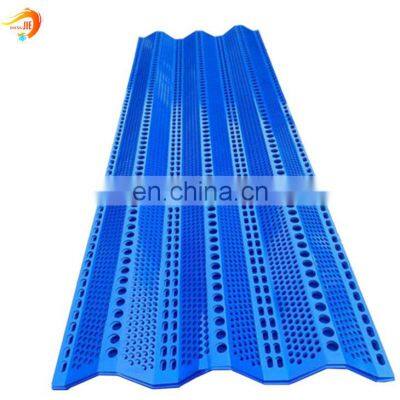

Wind dust corrugated perforated metal mesh>>>>>>
Description: Wind dust net uses steel plate, galvanized plate, PVC color plate and stainless steel plate as the material. Through punching, pressing and coating by mechanical combination of mold. With the character of high strength, good toughness, anti-aging, flame resistant, resistant temperature changing, acid and strong ability to withstand bending, etc.
Types:
>single peaks wind dust net
>twin peak wind dust net
>three peak wind dust net
>perforated corrugated metal panels
>expanded corrugated metal panels

1)Single Peak Wind Dust Net:
Forming 450mm in width, peak of high is 50mm-100mm, Plate thickness 0.5mm-1.0mm. Length: 0-6m. We can produce according to customer's

2)Twins Peaks Wind Dust Net:
Forming 900mm in width, peak of high is 50mm-100mm, Plate thickness 0.5mm-1.0mm. Length: 0-6m. We can produce according to customer's requirements.

3)Three peaks wind dust net:
Forming 810mm—950mm in width, peak of high is 80mm, Plate thickness 0.5mm-1.0mm. Length: 0-6m. We can produce according
to customer's requirements.

4)Perforated corrugated metal panels:
Perforated corrugated metal mesh always show on circle hole shape, whatever one, two or three peaks wind dust net belong to perforated corrugated mesh, (the hole is circle shape).

5)Expanded corrugated metal panels:
Expanded corrugated metal mesh always show on diamond hole shape, whatver one, two or three peaks wind dust net belong to expanded corrugated mesh,(the hole is diamond shape)
Features:
Anti-UV (anti-aging). The products surface through spray plastic, can absorb UV from sunshine, reducing the speed of oxidation. Made our products have good anti-aging, increasing long-life. At the same time, because of allow low UV avoiding the damage from the sunshine.Good flame retardant. The metal plate have good ability of flame retardant, can demand the request of firefighting and safety production.Impact resistance. Products have high strength, so can bear the impact of hail. Impact strength test for detection, a 1kg steel ball free fall away 1.5m from the peak height of crest. Our products with not fracture and run through.Anti-static. The products surface through the process of electrostatic spray, after irradiation by sunlight, oxidation and decomposition the organic contaminants an the products surface. In addition, easy washing by rain, have the effect of washing by itself, no-cost.Others>>>

	change the wind direction
	slow down wind power
	dust suppression
	noise control
	long validity
	very beautiful

The production of wind dust net:
Shearing and bending: This is the most important step for production. Products quality be decided to advanced processing equipment.
Punching: The second step, professional production workers products highquality perforated products.
Forming: The third step, our production forming equipment have twins and three peaks forming equipment. The length of wind dust net up to 10m, even more.
Washing: The fourth step, ready for electrostatic spray. The washing effect directly affect the quality of surface spraying.
Electrostatic spray: The fifth step. The process of electrostatic spray made our products corrosive under all kind of harsh environments.
Application:
Wind Dust Net is mainly used for coal mines, coking plants, power plants and other enterprises plant reservoir coal yard; ports and harbors, coal storage field and a variety of materials field; iron and steel, building materials, cement and other enterprises of various open-air yard; crops against wind, weather, dust and other harsh environment desertification; rail, road transport of coal set point storage coal yards, construction sites, road dust, along highways and so on.
(1)The Power plants, coal mines, coking plants and other enterprises plant reservoir coal yard,
(2) Ports, docks coal storage yard and various kinds of materials yard,
(3)Steel, building materials, cement and other enterprises of all sorts of outdoor yard,
(4)Railway and Highway transportation station coal storage yard.
(5)Construction site, road engineering temporary building field.
The use of premises:
Power plants, coal mines, coking plants, coal washing plant and other enterprises in the coal storage yard.Ports, terminals and a variety of coal storage yard field.Iron and steel, building materials, cement and other enterprises of various open-air yard.Rail, highway coal Cargo Station coal storage yard.Construction sites, temporary construction of road works site.
Package:
wooden cases.as client's requirments.Certifications:
